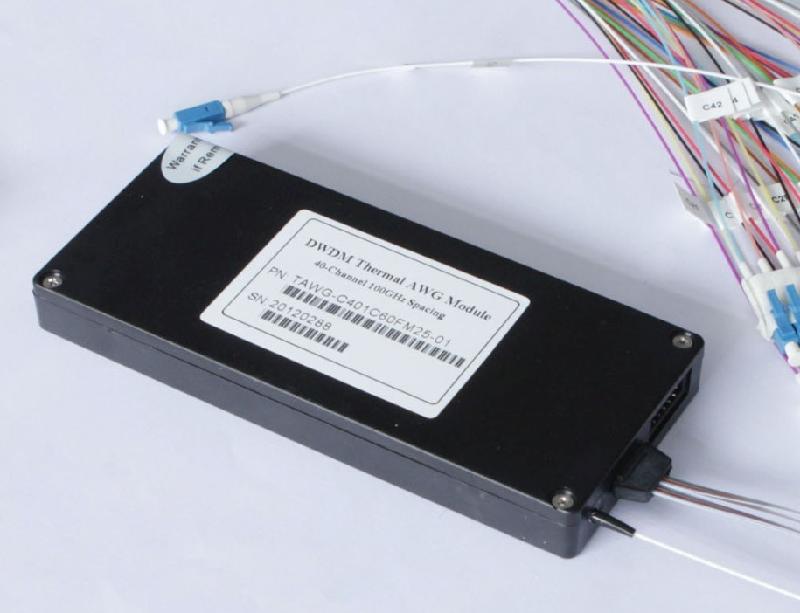

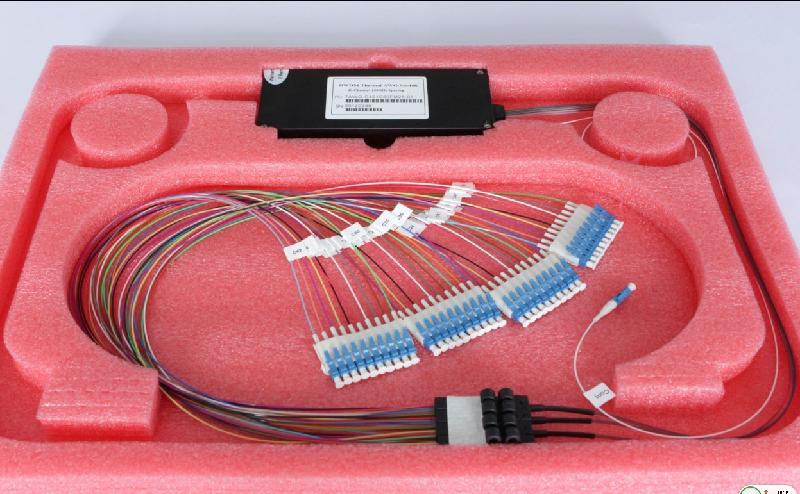

供應40CH 100G AWG DWDM密集波分復用器
深圳市密集波分復用器廠家
價格： 電議
物流： 暫無物流地址| 買家支付運費
可銷售總量： 0件
手機： 13926509023 郵箱： 530536770@qq.com
傳真： 0755-29048624 地址： 廣東 深圳市
郵箱：
手機：
| AWG | X | XX | X | XXX | X | X | X | XX |
|
| Band | Number of Channels | Spacing | 1st Channel | Filter Shape | Package | Fiber Length | In/Out Connector |
| C=C-Band L=L-Band D=C+L-Band X=Customize | 16=16-CH 32=32-CH 40=40-CH 48=48-CH XX=Special | 1=100G 2=200G 5=50G X=Special | C60=C60 H59=H59 C59=C59 H58=H58 XXX=special | G=Gaussian B=Broad Gaussiar F=Flat Top | M=Module R=Rack X=Special | 1=0.5m 2=1m 3=1.5m 4=2m 5=2.5m 6=3m S=Specify | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC 7=ST/UPC S=Specify |
| Parameters | Condition | Specs | Units | ||
| Min | Typ | Max | |||
| Number of Channels |
| 40 |
| ||
| Number Channel Spacing | 100GHz | 100 | GHz | ||
| Cha. Center Welength | ITU frequency. | C -band | nm | ||
| Clear Channel Passband |
| ±0.1 | nm | ||
| Welength Stability | Maximum range of the welength error of all channels and temperatures in erage polarization. | ±0.05 | nm | ||
| -1 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.4 |
|
| nm |
| -3 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.6 |
|
| nm |
| Optical Insertion Loss at ITU grid | Defined as the minimum transmission at ITU welength for all channels. For each channel, at all temperatures and polarizations. |
| 4.5 | 6.0 | dB |
| Adjacent Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid welength to the highest power, all polarizations, within the ITU band of the adjacent channels. | 25 |
|
| dB |
| Non-Adjacent, Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid welength to the highest power, all polarizations, within the ITU band of the nonadjacent channels. | 30 |
|
| dB |
| Total Channel Isolation | Total cumulative insertion loss difference from the mean transmission at the ITU grid welength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels. | 22 |
|
| dB |
| Insertion Loss Uniformity | Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures. |
| 1.0 | 1.5 | dB |
| Directivity(Mux Only) | Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n | 40 |
|
| dB |
| Insertion Loss Ripple | Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port |
|
| 0.5 | dB |
| Optical Return loss | Input & output ports | 40 |
|
| dB |
