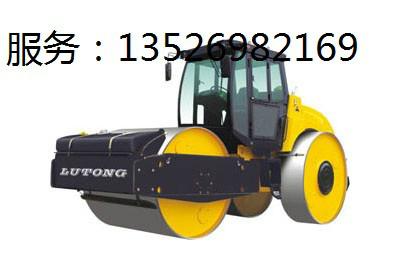

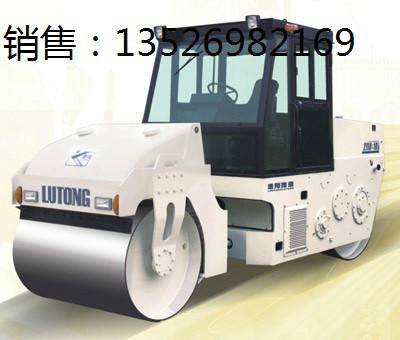

供應一拖路通2YJ8X10-2YJ6X8靜碾壓路機
洛陽市壓路機廠家
價格： 電議
物流： 暫無物流地址| 買家支付運費
可銷售總量： 0件
手機： 13526982169 郵箱： ytolutong@163.com
傳真： 尚未完善 地址： 河南 洛陽市
郵箱：
手機：
| 兩輪靜碾壓路機最宜用于壓平及最后壓實礫石、碎石、柏油及瀝青混凝土路面，亦可用于壓實路基。 | |||||||
| Tandem Static Roller is mostly suitable for flattening and compacting surfaces of the roads including hornblende,broken stone,asphalt and concrete ones.It can be also used for cpmpacting bases of roads.The nose of roller is narrow with an excellent turning sight. | |||||||
| Bitmap
| |||||||
| 1.鉸接式連接，轉向靈活；采用液壓制動，制動可靠。 | |||||||
| Articulated connection and flexible steering;Hydraulic brake,safe and dependable. | |||||||
| 2.機身前端狹窄，轉向視野好； | |||||||
| The nose of such roller is narrow with an excellent turning sight. | |||||||
| 3.設有電灑水裝置，前后輪面噴灑均勻； | |||||||
| Sprinkling system used for evenly sprinkling water on the surface of double drums. | |||||||
| 主要技術參數Main Technical Parameters | |||||||
| 型號Model | 2YJ8X10 | 2YJ6X8 | |||||
| 工作質量(不加載/加載）Operating mass (Unballasted/Ballasted) | Kg | 8000/10000 | 6000/8000 | ||||
| 前輪線載荷（不加載/加載）Front linear load (Unballasted/Ballasted) | N/cm | 242/303 | 182/242 | ||||
| 后輪線載荷（不加載/加載）Rear linear load(Unballasted/Ballasted) | N/cm | 343/429 | 257/343 | ||||
| 一速First gear | 2.62 | 2.62 | |||||
| 二速Second gear | 5.18 | 5.18 | |||||
| 三速Third gear | 10.3 | 10.3 | |||||
| 爬坡能力Grade ability | % | 20 | 20 | ||||
| 轉向角度Steering angle | ° | ±30 | ±30 | ||||
| 轉彎半徑(內側/外側)Turning radius (Inside/Outside) | mm | 5050/6450 | 5050/6450 | ||||
| 外觀尺寸Overall dimension | mm | 4400x1770x2620 | 4380x1710x2560 | ||||
| 軸距Wheelbase | mm | 3220 | 3220 | ||||
| 最小離地間隙Ground clearance | mm | 320 | 320 | ||||
| 柴油機型號Diesel model | 498BG | 498BG | |||||
| 柴油機功率Diesel power | KW | 36~42 | 36~42 | ||||
| 柴油機額定轉速Disel speed | r/min | 2000 | 2000 | ||||
| 電器電壓Electrical voltage | V | 12 | 12 | ||||
| 油耗Oil consumption | g/Kw.h | 245 | 245 | ||||
| 燃油箱容積 Fuel tank capacity | L | 50 | 50 | ||||
| 液壓油箱容積Hydraulic oil tank capacity | L | 50 | 50 | ||||
| 灑水箱容積Water tank capacity | L | 435 | 435 | ||||
￥96000
