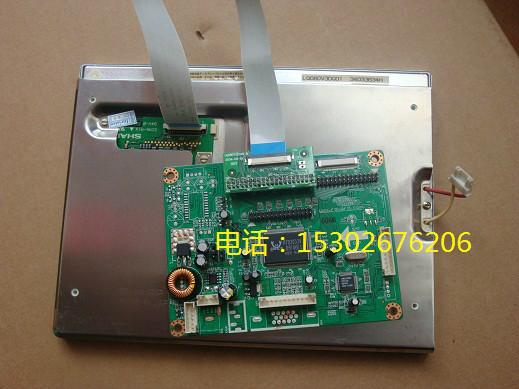

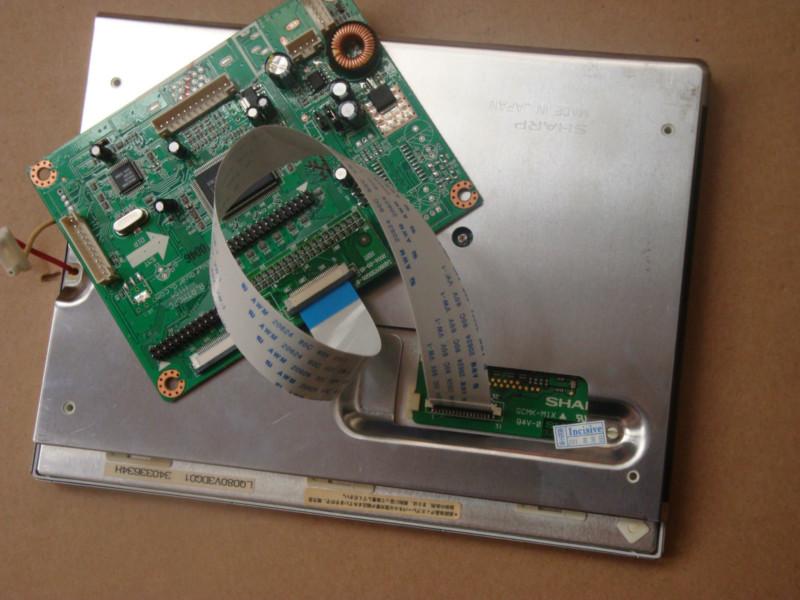

供應 LQ080V3DG01夏普工控屏

LQ080V3DG01基本參數

制造商(Productor)

SHARP (夏普)

產品型號(MODEL)

LQ080V3DG01

屏尺寸(Size)

8英寸

分辨率(Resolution)

640x480

顯示比例(Display scale)

4:3

像素排列(Pixel Arrangement)

VGA

產品組成(Panel Coition)

液晶屏

面板類型(Technology)

a-Si

主要用途(Applications)

工業

顯著特征(Panel Features)

表面霧面，上/下,左/右翻轉顯示

LQ080V3DG01光電參數

顯示模式(Display mode)

TN，常白顯示，透射式

亮度(Luminance)

380 nits

對比度(Coast Ratio)

250 :1

顏色(Color)

262K(6bit)

色彩飽和度(Color Saturation)

RGBVerticalStripe

響應時間(Response)

30/50(Tr/Td) ms

可視角度(Viewing Angle)

65/65/65/55 (上/下/左/右)

視角(The Best View)

6o

反轉掃描(Reverse Scan)

翻轉(水平/垂直)

接口類型(Interface)

ParallelRGB(1ch,6bit)

信號接口定義(Singnal Interface Definition)

ParallelRGB

驅屏電壓(Drive-screen voltage)

3.3/5.0V(VCC)

面板輸入電流(Input Current)

32

信號接口類型(Kind of Singnal Interface)

DRGB-32P1C6B-040A

信號接口腳距(Pitch of Singnal Interface)

1 mm

信號接口數量(Quantity of Singnal Interface)

IL-FPR-32S-VF-N1 pcs

信號接口腳數(Pin of Singnal Interface)

0.5 pins

LQ080V3DG01結構參數

工作溫度(Operation Temperature)

0 C~ 70 C

存儲溫度(Storage Temperature)

-25^oC ~ 70^oC

面板重量(Weight)

390±20 g

表面處理(Surface Technology)

霧面，抗反射處理

顯示區域(Active Area)

162.2x121.7 mm

外形尺寸(Outline)

183.0x141.0x14.0 mm

燈管位置(CCFL ition)

BLL-2PINS-HL

背光類型(Backlight)

CCFL

燈管數量(Lamp Number)

1 pcs

燈管形狀(CCFL Shape)

側入式光源

背光壽命(Life Time of Lamp)

10K Hours

單一燈管電壓(Voltage of Lamp)

U形

單一燈管電流(Current of Lamp)

770/860/950

燈管工作頻率(working frequency of BL)

4.0/6.0/7.0mA(Min./Typ./Max.)

燈管啟動電壓(Starting Voltage of Backlight )

35/70KHz(Min./Max.)

背光接口類型(Kind of Backlight Interface)

翻轉(水平/垂直)

背光接口腳距(Pitch of Backlight Interface)

1 mm
