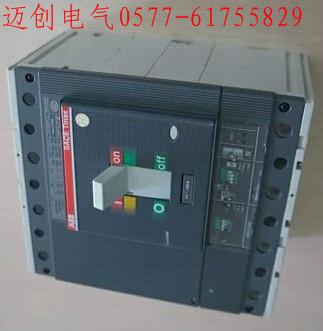

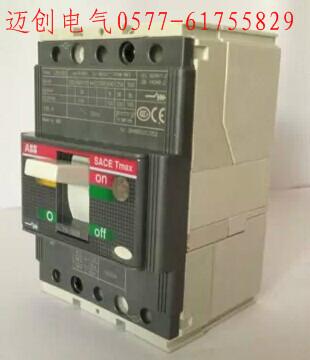

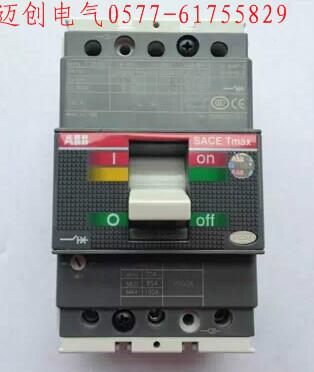

供應T2N160塑殼斷路器T2N160空氣開關

塑殼斷路器 S系列 T系列
一：用途及適用范圍
A-S系列塑料外殼式斷路器，適用于交流50HZ(或60HZ)，額定絕緣電壓690V，額定工作電壓660V(690V)及以下，直流250V及以下，額定電流12.5A~1600A的電路中用來分配電能，在正常條件下作不頻繁的閉合和斷開之用，并在線路和設備過載、短路和欠電壓時起保護之用。額定殼架等級電流在400A及以下的斷路器，也可作鼠籠型電動機的不頻繁起動，運轉中中斷以及在電動機過載、短路及欠電壓時起保護作用。斷路器符合IEC60947-2、GB14048.2、GB14048.4等標準。

二：型號及其含義

注：1、配電永斷路器無代號；電動機保護型為“2”

2、手柄直接操作無代號；電動操作以P表示；外部轉動手柄操作以Z表示

3、額定短路分?jǐn)嗄芰?jí)別：N-標準型；H高分?jǐn)嘈?br />
4、熱磁脫扣器無代號；電子脫扣器用“S”表示。

產 品 類 別

按斷路器的用途分：配電保護型；電動機保護型；

按接線方式分：板前接線、板后接線、插入、抽出式接線；

按操作方式分：手柄直接操作、外部轉動手柄操作、電動操作

按脫扣器方式分：瞬時動作脫扣器（電磁脫扣器）、熱動+電磁脫扣器（復式）；電子脫扣器。
按極數分：三極、四極；
T系列塑殼斷路器部分型號
 T塑殼斷路器“插入式”
T2N160 TMD4/40 PMP
T2N160 TMD6.3/63 PMP
T2N160 TMD10/100 PMP
T2N160 TMD16/500 PMP
T2N160 TMD20/500 PMP
T2N160 TMD25/500 PMP
T2N160 TMD32/500 PMP
T2N160 TMD40/500 PMP
T2N160 TMD50/500 PMP
T2N160 TMD63/630 PMP
T2N160 TMD80/800 PMP
T2N160 TMD100/1000 PMP
T2N160 TMD125/1250 PMP
T2N160 TMD160/1600 PMP

T2S160 TMD4/500 PMP
T2S160 TMD6.3/500 PMP
T2S160 TMD10/500 PMP
T2S160 TMD16/500 PMP
T2S160 TMD20/500 PMP
T2S160 TMD25/500 PMP
T2S160 TMD32/500 PMP
T2S160 TMD40/500 PMP
T2S160 TMD50/500 PMP
T2S160 TMD63/630 PMP
T2S160 TMD80/800 PMP
T2S160 TMD100/1000 PMP
T2S160 TMD125/1250 PMP
T2S160 TMD160/1600 PMP

T2H160 TMD4/500 PMP
T2H160 TMD6.3/500 PMP
T2H160 TMD10/500 PMP
T2H160 TMD16/500 PMP
T2H160 TMD20/500 PMP
T2H160 TMD25/500 PMP
T2H160 TMD32/500 PMP
T2H160 TMD40/500 PMP
T2H160 TMD50/500 PMP
T2H160 TMD63/630 PMP
T2H160 TMD80/800 PMP
T2H160 TMD100/1000 PMP
T2H160 TMD125/1250 PMP
T2H160 TMD160/1600 PMP

T2L160 TMD4/500 PMP
T2L160 TMD6.3/500 PMP
T2L160 TMD10/500 PMP
T2L160 TMD16/500 PMP
T2L160 TMD20/500 PMP
T2L160 TMD25/500 PMP
T2L160 TMD32/500 PMP
T2L160 TMD40/500 PMP
T2L160 TMD50/500 PMP
T2L160 TMD63/630 PMP
T2L160 TMD80/800 PMP
T2L160 TMD100/1000 PMP
T2L160 TMD125/1250 PMP
T2L160 TMD160/1600 PMP
Tmax T3 塑殼斷路器(T型) -  插入式移動部份
單價不包括插入式之固定部份
脫扣單元 : TMD-熱磁脫扣(熱門限值可調和磁門限值不可調)
型號
T3N250 TMD63/630 PMP
T3N250 TMD80/800 PMP
T3N250 TMD100/1000 PMP
T3N250 TMD125/1250 PMP
T3N250 TMD160/1600 PMP
T3N250 TMD200/2000 PMP
T3N250 TMD250/2500 PMP
T3S250 TMD63/630 PMP
T3S250 TMD80/800 PMP
T3S250 TMD100/1000 PMP
T3S250 TMD125/1250 PMP
T3S250 TMD160/1600 PMP
T3S250 TMD200/2000 PMP
T3S250 TMD250/2500 PMP
Tmax T4 塑殼斷路器(T型) -  插入式移動部份
單價不包括插入式之固定部份
脫扣單元 : TMD-熱磁脫扣(熱門限值可調和磁門限值不可調) / TMA-熱磁脫扣(熱磁門限值可調)
型號
T4N250 TMA100/500-1000 PMP
T4N250 TMA125/625-1250 PMP
T4N250 TMA160/800-1600 PMP
T4N250 TMA200/1000-2000 PMP
T4N250 TMA250/1250-2500 PMP
T4S250 TMA100/500-1000 PMP
T4S250 TMA125/625-1250 PMP
T4S250 TMA160/800-1600 PMP
T4S250 TMA200/1000-2000 PMP
T4S250 TMA250/1250-2500 PMP
T4H250 TMA100/500-1000 PMP
T4H250 TMA125/625-1250 PMP
T4H250 TMA160/800-1600 PMP
T4H250 TMA200/1000-2000 PMP
T4H250 TMA250/1250-2500 PMP
T4L250 TMA100/500-1000 PMP
T4L250 TMA125/625-1250 PMP
T4L250 TMA160/800-1600 PMP
T4L250 TMA200/1000-2000 PMP
T4L250 TMA250/1250-2500 PMP
T4V250 TMA100/500-1000 PMP
T4V250 TMA125/625-1250 PMP
T4V250 TMA160/800-1600 PMP
T4V250 TMA200/1000-2000 PMP
T4V250 TMA250/1250-2500 PMP
Tmax T5 塑殼斷路器(T型) -  插入式移動部份
單價不包括插入式之固定部份
脫扣單元 : TMA-熱磁脫扣(熱磁門限值可調)
型號
T5N400 TMA320/1600-3200 PMP
T5N400 TMA400/2000-4000 PMP
T5N630 TMA500/2500-5000 PMP
T5S400 TMA320/1600-3200 PMP
T5S400 TMA400/2000-4000 PMP
T5S630 TMA500/2500-5000 PMP
