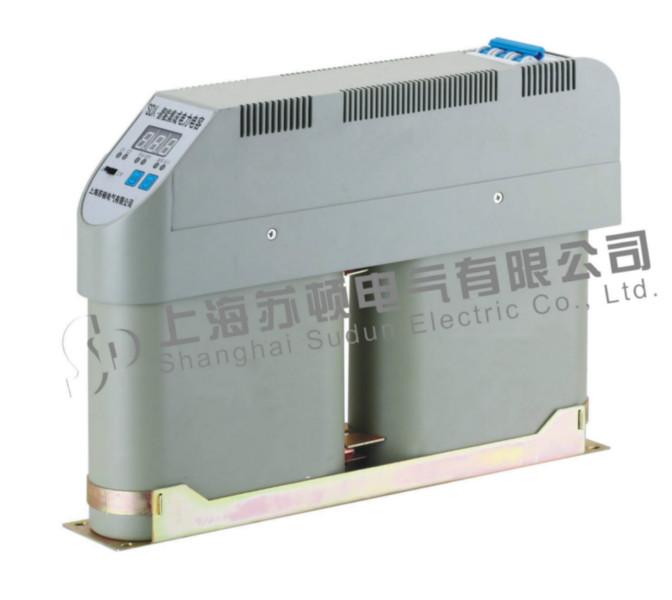

供應BKMJ圓柱電容器
上海市圓柱電容器廠家
價格： 1200
物流： 暫無物流地址| 買家支付運費
可銷售總量： 0件
手機： 13167199049 郵箱： sudun110@163.com
傳真： 021-54337131 地址： 上海市 上海市
郵箱：
手機：
產品簡介
BKMJ0.525-50-1
BKMJ系列低壓并聯電容器適用于補償工頻電力系統感性無功功率，以提高功率因數，改善供電質量，降低線路損耗。
技術參數：
執行標準：IEC60831-1，IEC60831-2，GB/T12747-2004
額定電壓; 230V、250V、280V、400V、415V、440V、450V、480V、525V、690V、750V、1200V、
額定頻率：50~60Hz
額定容量：3Kvar ～30Kvar
過電壓范圍：1.1Un（8小時/24小時）/ 1.1Un+30%（連續1分鐘）
過電流范圍：1.3In
浪涌電流：200倍額定電流
損耗（介質）：<0.2W/kVar
容值偏差：-5 ~+10%
極間耐壓：2.15Un，AC，10S
極殼耐壓：3000V，AC，10S
設計壽命：正常工作條件下170,000工作小時
環境溫度：-40/ D (+65℃
冷 卻：自然冷卻（或強制風冷）
允許濕度：95%
海拔高度：≤4000m
安裝方式: 垂直安裝(其他方式安裝請說明可提供)
安全性：干式技術，過壓力保護裝置，自愈合技術，過電流保護器
放電器件：內置放電電阻
外殼材質：優質鋁外殼
防污等級：IP20，戶內安裝， 加裝特殊的防護罩可以滿足戶外安裝
介質材料: 金屬覆膜聚丙烯介質
填充材料: 干式阻燃礦物
端 子: M6/M8銅螺栓，帶防觸電保護罩
相關參數
| 產品型號 | （kV） | 電流（A） | 容量 | 電容（μF） | L×W×H（mm) | （mm) D?×H |
| BSMJ0.45-8-3 | 0.45 | 10.3 | 8 | 125.8 | 167×57×110 | ?76×240—M12×16 |
| BSMJ0.45-10-3 | 0.45 | 12.8 | 10 | 157.3 | 167×57×130 | ?76×240—M12×16 |
| BSMJ0.45-12-3 | 0.45 | 15.4 | 12 | 188.7 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.45-14-3 | 0.45 | 18 | 14 | 220.2 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.45-15-3 | 0.45 | 19.2 | 15 | 235.9 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.45-16-3 | 0.45 | 20.5 | 16 | 251.6 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.45-18-3 | 0.45 | 23.1 | 18 | 283.1 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.45-20-3 | 0.45 | 25.7 | 20 | 314.5 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.45-22-3 | 0.45 | 28.2 | 22 | 346 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.45-24-3 | 0.45 | 30.8 | 24 | 377.5 | 167×57×245 | ?96×240—M16×25 |
| BSMJ0.45-25-3 | 0.45 | 32.1 | 25 | 393.2 | 180×95×210 | ?96×240—M16×25 |
| BSMJ0.45-30-3 | 0.45 | 38.5 | 30 | 471.8 | 180×95×210 | ?116×280—M16×25 |
| BSMJ0.45-32-3 | 0.45 | 41.1 | 32 | 503.3 | 180×95×210 |
|
| BSMJ0.45-35-3 | 0.45 | 44.9 | 35 | 550.4 | 180×95×210 |
|
| BSMJ0.45-40-3 | 0.45 | 51.3 | 40 | 629.1 | 180×95×250 |
|
| BSMJ0.45-45-3 | 0.45 | 57.7 | 45 | 707.7 | 180×95×250 |
|
| BSMJ0.45-50-3 | 0.45 | 64.2 | 50 | 786.3 | 270×120×210 |
|
| BSMJ0.45-60-3 | 0.45 | 77 | 60 | 943.6 | 270×120×210 |
|
| BSMJ0.48-8-3 | 0.48 | 9.6 | 8 | 110.6 | 167×57×110 | ?76×240—M12×16 |
| BSMJ0.48-10-3 | 0.48 | 12 | 10 | 138.2 | 167×57×130 | ?76×240—M12×16 |
| BSMJ0.48-12-3 | 0.48 | 14.4 | 12 | 165.9 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.48-14-3 | 0.48 | 16.8 | 14 | 193.5 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.48-15-3 | 0.48 | 18 | 15 | 207.3 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.48-16-3 | 0.48 | 19.2 | 16 | 221.2 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.48-18-3 | 0.48 | 21.7 | 18 | 248.8 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.48-20-3 | 0.48 | 24.1 | 20 | 276.5 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.48-22-3 | 0.48 | 26.5 | 22 | 304.1 | 167×57×245 | ?116×240—M16×25 |
| BSMJ0.48-24-3 | 0.48 | 28.9 | 24 | 331.7 | 167×57×245 | ?116×240—M16×25 |
| BSMJ0.48-25-3 | 0.48 | 30.1 | 25 | 345.6 | 180×95×210 | ?116×240—M16×25 |
| BSMJ0.48-30-3 | 0.48 | 36.1 | 30 | 414.7 | 180×95×210 | ?116×280—M16×25 |
| BSMJ0.48-32-3 | 0.48 | 38.5 | 32 | 442.3 | 180×95×210 |
|
| BSMJ0.48-35-3 | 0.48 | 42.1 | 35 | 483.8 | 180×95×210 |
|
| BSMJ0.48-40-3 | 0.48 | 48.1 | 40 | 552.9 | 180×95×250 |
|
| BSMJ0.48-45-3 | 0.48 | 54.1 | 45 | 622 | 180×95×250 |
|
| BSMJ0.48-50-3 | 0.48 | 60.1 | 50 | 691.1 | 270×120×210 |
|
| BSMJ0.48-60-3 | 0.48 | 72.2 | 60 | 829.4 | 270×120×210 |
|
| BSMJ0.23-8-3 | 0.23 | 20.1 | 8 | 481.6 | 167×57×180 | ?76×240—M12×16 |
| BSMJ0.23-10-3 | 0.23 | 25.1 | 10 | 602 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.23-12-3 | 0.23 | 30.1 | 12 | 722.4 | 167×57×210 | ?86×240—M12×16 |
| BSMJ0.23-14-3 | 0.23 | 35.1 | 14 | 842.8 | 167×57×245 | ?96×240—M16×25 |
| BSMJ0.23-15-3 | 0.23 | 37.7 | 15 | 903 | 167×57×245 | ?96×240—M16×25 |
| BSMJ0.23-16-3 | 0.23 | 40.2 | 16 | 963.2 | 167×57×245 | ?106×240—M16×25 |
| BSMJ0.23-20-3 | 0.23 | 50.2 | 20 | 1204.1 | 180×95×210 | ?116×240—M16×25 |
| BSMJ0.23-25-3 | 0.23 | 62.8 | 25 | 1505.1 | 180×95×250 | ?116×280—M16×25 |
| BSMJ0.23-30-3 | 0.23 | 75.3 | 30 | 1806.1 | 270×120×210 |
|
| BSMJ0.525-8-3 | 0.525 | 8.8 | 8 | 92.4 | 167×57×130 | ?76×240—M12×16 |
| BSMJ0.525-10-3 | 0.525 | 11 | 10 | 115.5 | 167×57×130 | ?76×240—M12×16 |
| BSMJ0.525-12-3 | 0.525 | 13.2 | 12 | 138.7 | 167×57×180 | ?76×240—M12×16 |
| BSMJ0.525-14-3 | 0.525 | 15.4 | 14 | 161.8 | 167×57×180 | ?76×240—M12×16 |
| BSMJ0.525-15-3 | 0.525 | 16.5 | 15 | 173.3 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.525-16-3 | 0.525 | 17.6 | 16 | 184.9 | 167×57×180 | ?86×240—M12×16 |
| BSMJ0.525-18-3 | 0.525 | 19.8 | 18 | 208 | 167×57×210 | ?86×240—M12×16 |
| BSMJ0.525-20-3 | 0.525 | 22 | 20 | 231.1 | 167×57×210 | ?96×240—M16×25 |
| BSMJ0.525-25-3 | 0.525 | 27.5 | 25 | 288.9 | 180×95×210 | ?96×240—M16×25 |
| BSMJ0.525-30-3 | 0.525 | 33 | 30 | 346.6 | 180×95×210 | ?116×240—M16×25 |
| BSMJ0.525-40-3 | 0.525 | 44 | 40 | 462.2 | 180×95×250 | ?116×280—M16×25 |
| BSMJ0.525-50-3 | 0.525 | 55 | 50 | 577.7 | 270×120×210 |
|
| BSMJ0.525-60-3 | 0.525 | 66 | 60 | 693.3 | 270×120×210 |
|
