超聲波流量計
General
Ultrasonic transit-time differential measurement can be employed to measure the volume flow of any liquid, regardless of electrical conductivity. Two different types of sensors enable users to meter flow cost-effectively, economically and flexibly, anywhere in the process and at any time: clamp-on sensors and inline sensors.
Transmitters
The transmitters are ailable as wall-mount or field housings for hazardous areas and for the process industry. These meters integrate easily into higher-order process-cool systems and support the mainstream Fieldbus systems. The choice of transmitter depends on process requirements and on the type of sensor.
Prosonic Flow 90
- For standard applications
- For clamp-on and insertion sensors
- Two-line, backlit display
- Pushbutton cools
- With PROFIBUS PA
Prosonic Flow 91
- For basic applications
- For clamp-on sensors
- Two-line display
- Pushbuton cools
- With current output (HART) and PROFIBUS PA
Prosonic Flow 92
- Two-wire transmitter
- For Prosonic Flow F sensor
- Remote or compact version
- Suitable for hazardous areas (Ex i, Ex d)
- Two-line display
- Pushbutton cools
- With current output (HART), pulse and status output
Prosonic Flow 93
- For extended functionality in process applications and hazardous areas (incl. Fieldbus communications)
- For clamp-on, insertion or inline sensors
- Four-line, backlit display
- Touch Cool operation from outside
- For registering flow at two measuring points or with two ultrasonic paths (two-channel measurement)
- F-CHIP for software options
Prosonic Flow 92T
- Portable ultrasonic transmitter for temporary metering
- For all clamp-on sensors
- With integrated data logger
- For monitoring processes and for test measurements (e.g. leak tests)
- Large, backlit display (with graphics capability)
- Quick Setup for easy operation
Sensors
The range of sensors is extensive, so widely differing sets of requirements can besatisfied. Clamp-on sensors retrofit to the outside of existing pipes, e.g. for verifying other meters or for temporary flow measurement (accuracy: typically ±2% o.r.). Inline sensors for direct installation in the pipe meet higher accuracy requirements (±0.3 to 0.5% o.r.).
Prosonic Flow W (clamp-on)
- For measuring from outside
- For standard applications
-20...+130 °C (-5...+260 °F) - For diameters DN 50...4000 (2...160")
Prosonic Flow P (clamp-on)
- For measuring from outside
- For industrial process applications,
-40...+170 °C (-40...+338 °F) - Ex-approvals
- For diameters DN 15...4000 (1/2...156")
Prosonic Flow U (clamp-on)
- For measuring from outside
- For the pharmaceuticals and semiconductor industries,
-20...+80 °C (-5...+180 °F) - For small diameters
DN 15...100 (1/2...4")
Prosonic Flow W (insertion)
- For sonically non-conductive pipes
- For water/wastewater applications,
-20...+80 °C (-5...+180 °F) - For diameters DN 200...4000
(8...160") - Optional as two-path version for short inlet runs
Prosonic Flow C (in-line)
- For guaranteed accuracy
- For water/wastewater applications, up to +60 °C (+140 °F)
- Nominal Diameters
DN 300...2000 (12...80") - EN (DIN), ANSI and AWWA process connections
- Guaranteed, traceable accuracy (±0.5% o.r) by factory calibration
- Cost-effective alternative to large magmeters
- With approval for potable water

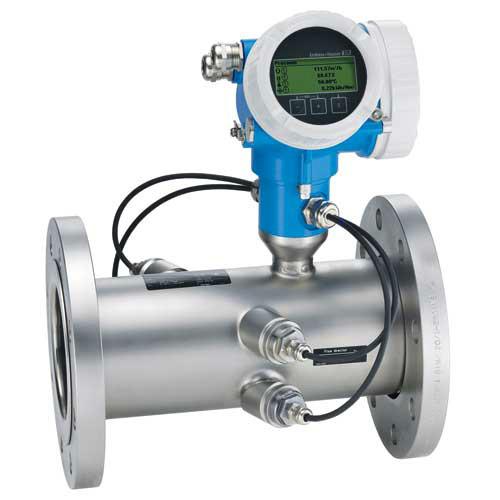

Prosonic Flow F (in-line)
- For guaranteed accuracy
- For all liquids, e.g. in the chemical and petrochemical industries, -40 to 200 °C (-40...392 °F)
- Nominal diameters: DN 25 to 300 (1...12")
- EN (DIN), ANSI process connections
- Traceable accuracy (±0.3 to 0.5% o.r.) by factory calibration
- For limited space (inlet run only 5 × DN)
