供應T8鋁支架｜LED燈管支架批發｜福建LED燈管支架價格

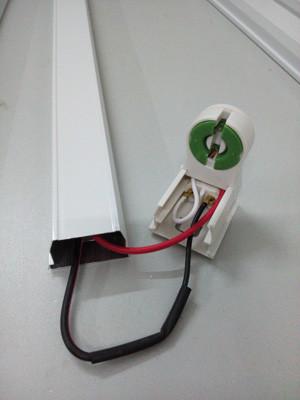

聯勝LED鋁合金支架【LS-806】：材質采用優質鋁合金材料，鋁合金支架有輕便美觀、簡潔大方、不生銹、易于安裝等特點；
鋁支架采用擠壓成型，支架壁厚度0.35mm，支架表面采用噴塑工藝處理，美觀大方；
適配光源：T8 T10 LED日光燈管;
產品長度有0.6米、0.9米、1.2米、1.5米四種規格，適配LED燈管長度分別是：598MM【9瓦】、894MM【12瓦】、1198MM【18瓦】、1498MM【24瓦】（不含燈管插針），同時可以根據客戶的要求，訂制非標長度的產品；
配件材質：導線和燈座采用阻燃材料，布線整齊，支架腳座采用徑向推進旋轉式設計，保證燈管腳與支架座接觸良好，方便安裝LED日光燈管;
線芯采用RVB 2*0.5平方雙芯紅黑線，（使用環保、阻燃、無氧化銅材料，獲得歐盟RoHS等認證），全自動剝線機剝線，焊錫后連接燈座，牢固耐用；
接線方式采用雙端布線，支架兩端都可接電源線，任意一端通電都可以點亮LED燈管（配八字尾插頭更方便接通電源線），方便安裝；
支架可以串連使用（含串連配件），適用于工廠流水線或商場超市安裝使用；
安裝方式：吸項式安裝，配安裝卡扣，將卡扣固定后，支架放入卡槽內即可，安裝簡單快速；
包裝方式：中性紙箱包裝（每箱100支），支架先裝入膠袋內再裝紙箱，PE袋能有效防塵和防止支架刮傷；外箱選用加厚加強五層瓦楞紙箱，可有效防止和減少運輸對支架可能造成的變形、壓彎等傷害。
產品出口美國、日本、歐洲等多個國家，適用于中LED裝修工程。

東莞市聯勝照明有限公司
0769-81555310  13650400070

The aluminum frame of LED made in Liansheng[LS-806] has advantages as follow: Its material is made from high quality alloy aluminum, The features of aluminum frame are portable and beautiful, Concise and easy ,difficult to rust, easy to install and so on;
Aluminum frame is made through extrusion; thickness of frame wall is 0.35mm, surface of the frame is processed by spray technology， so it has a good   appearance
Match LED: T8 T10 LED  fluorescent tube
Length of the Products has four specifications: 0.6 m, 0.9 m, 1.2 m and 1.5 m, the length of
the match LED fluorescent tube are 598mm(9w) 894mm(12w),1198mm(18w),1498mm(24w)( Do not contain tube pin),
we can also made products with non-standard length according to customer requirements in the same time
Parts Materials: wire and lamp base are made of flame retardant materials, wiring tidily, the bracket foot pedestal adapt the radial rotary design
Make sure the lamp base and the bracket foot pedestal contact well, the LED fluorescent tube is easy to be installed
core of the wire use rvb 2*0.5 double-core red-black wire (wire use pro-environment, antiflaming, no copper oxide materials , acquire  the European Union RoHS certification, etc)
Use automatic wire stripping machine , after soldering then connect to the lamp base ,make sure to be strong and durable
Mode of connection adapt double-ended wiring pattern, both ends of the stent can make connect with the power cord, LED lamp will be lighted if either side of It is powered
fluorescent tube(provide with eight tail plug  , connect the  wire more conveniently), easy to assemble
The holder can  be used after being tandemed(contain  tandem parts),It is suitable for manufactories or  Supermarkets
Installation Method: ceiling installation type ，provide  installation  button，after the button is fixed ，then put the holder in the snap , easy and quick to assemble
Package method: packed by neutral carton（100pcs per carton），first put the holder into polybag, then put the polybag into the carton，the polybag can prevent dust and scratches usefully
Outer Carton use thicken strengthen Five-layer corrugated carton box can prevent and decrease sible injuries caused by transportation and bending usefully when in transit
The  products  export to the United States ，Japan，Europe  etc. are suitable for middle to high class decorating project

Dong guan lian sheng Lighting Co,Ltd.
