詳細信息（供應山東山礦PCFK零部件）

型號：焦化系列

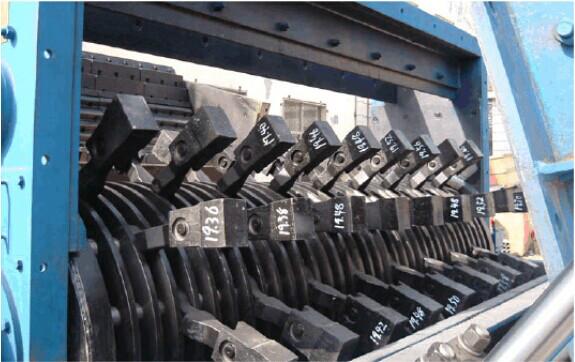

PCFK系列反式破碎機
IMPACT HAMMER MILL

概述 BRIEF IODUCTION
PCFK系列反式破碎機集錘破和反擊破于一體，適用于中低硬度物料的細碎階段，可將80mm以下的物料破碎到8mm以下。本系列機型具有破碎效率高、破碎產品粒度均勻、過粉碎比例低等優點。
As an integrator of hammer mill and impact mill, PCFK series of Impact Hammer Mill is used for secondary crushing of low- and medium-hardness materials. The size of material can be reduced from <80mm to <8mm. The mill enjoys advantages in high and constant capacity, excellent uniformity of final grain size, low fine grain content and etc.

應用范圍FIELDS OF APPLICATION
PCFK系列反式破碎機主要應用于火力發電廠循環流化床鍋爐、焦化廠、鋼鐵廠等破碎煤炭，同時也可為礦山、化工等行業破碎礦石、石灰石、石膏、鹽、焦炭等物料。
PCFK series of Impact Hammer Mill is mainly applied for crushing coal in power plants, coke ovens and iron & steel mill, as well as ore, limestone, gypsum, salt and coke.
工作原理MODE OF OPERATION
為獲得理想的排料粒度和錘頭的均勻磨損，采用振動給料機或入料槽在沿入料口全長上均勻給料。物料進入破碎機后，受到高速旋轉的錘頭沖擊而破碎，并高速沖向破碎板再次被破碎，經過破碎板的反彈，再次被彈向錘頭，物料在破碎腔內經過反復沖撞和互相碰撞而破碎，在反擊板體下部排料口排出。產品粒度決定于轉子的轉速及轉子與破碎板的間隙。
The uniform distribution of the feeding material at the entire width of the rotor via a vibrating feeder or a specially-designed inlet chute is requested for achieving an optimum final grain size as well as a uniform wear of the crushing parts. After entering the crushing city, the feed material is grasped by the rotating beater heads and then thrown against the grinding face at high speed to be crushed and again rebound to beater heads. The material is gradually crushed in a course of dash and inter-collision repeatedly and discharged out of the end of grinding face. Product size is determined by rotation speed of the rotor and gap between the rotor and the grinding wall.
結構特點STRUCTURE CHARACTERISTICS
PCFK系列反式破碎機主要由轉子、破碎板及其調節裝置、機殼、機座、傳動裝置等部分組成。
PCFK series of Impact Hammer Mill consists of rotor, grinding faces and adjusting units, housing, base frame, and drive unit.

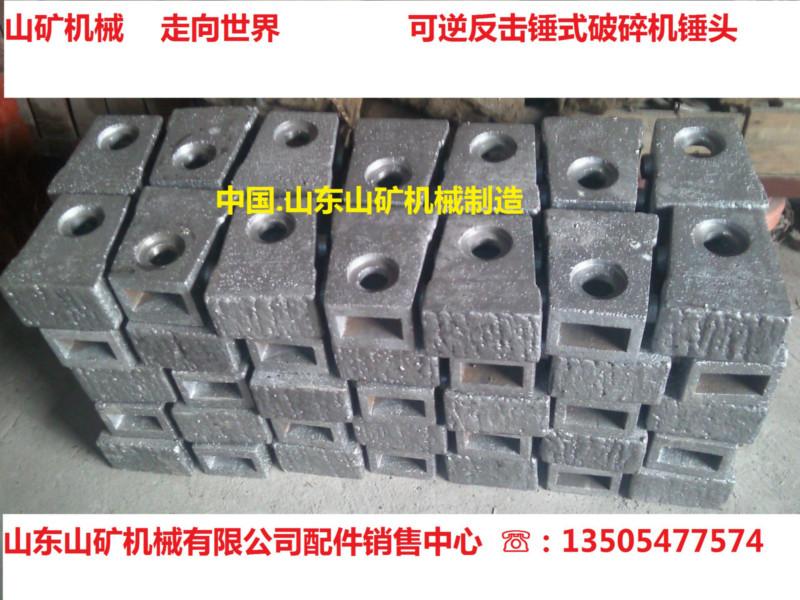

轉子錘桿和錘頭的柔性連接可保證在極硬的異物進入破碎機時，不會影響本機正常運轉或破壞錘頭。每組錘桿和錘頭與相對的錘桿和錘頭重量相等，確保轉子平衡。錘桿由優質鋼鍛制，錘頭為高耐磨合金鋼鑄件。主軸兩邊裝有雙列向心滾子軸承，并配備人工盤車六方軸頭。
The flexible connection of beater arms with heads ensures that the hammer mill is sturdy enough against the iusion of foreign hard matters. The arms and heads are weighed bundled by pairs to oid any unbalances and thus ensure exact balancing of the rotor. The arms are forged with quality steel and the heads are made of highly wear-resistant alloy t. Hey-duty spherical roller bearings in double rows are used as rotor bearings, located in dust-proof housings. Barring gear is fitted on the end of the rotor shaft.
破碎板的形狀對破碎效率的影響非常大，本機型設計了新型的破碎板，使物料碰撞破碎板的入射角接近90o，以使物料取得的破碎效果。由特殊高錳鋼制成的破碎板固定于破碎板支架上,轉子與破碎壁的間隙通過破碎板調節裝置來調整。
The shape of grinding faces has great impact on crushing efficiency. Specially designed grinding faces are fitted on the grinding wall to guarantee the angle of incidence of the material against the grinding wall at nearly 90o for optimum crushing result. Grinding faces, made of special high-manganese t steel, are screwed on welded base frame of the grinding wall. The two grinding faces are equipped with two adjusting points each for gap adjustment between rotor and grinding wall.
機殼可單向或雙向開啟，采用電液推桿開啟裝置，結構緊湊，操作維護簡便。
The housing can be opened up on one side or both sides by means of compact and easily-maintained electro-hydraulic pushing lever.
根據使用情況和用戶要求可選用下列配置和附加部件：
Upon customer’s requirement the following configuration and accessories can be selected:
¨ 可逆/不可逆式錘破Reversible and Non-reversible
可逆式錘破的兩側均配有破碎板,轉子可雙向運轉并可充分利用錘頭的兩面和兩側的破碎板。不可逆式錘破的轉子只能單向運轉，當錘頭的一面磨損時，錘頭須翻轉過來使用。
The reversible hammer mill mill is equipped with two grinding faces allowing a reversible operation and thus utilization of heads on and grinding faces both sides. As the rotor of the non-reversible hammer mill operates in single-direction, the heads have to be reversed for use after being worn out on one side.
¨ 破碎板加熱裝置 Heating System for Grinding Faces
當破碎物料中的水分大于14%時，可在破碎板后部配置加熱裝置（電、蒸汽或熱導油），使物料在機內流動順暢，保證破碎機產量和粒度穩定。
If the moisture content is usually over 14%, heating system (electrical, vapor or thermal oil) can be provided at the back of grinding faces to keep the material flow smoothly and guarantee stable throughput and product size.
¨ 傳動方式Drive Mode
本機型一般配備液力偶合器進行軟啟動。也可采用變頻調速器驅動，在不停機的情況下根據物料的硬度和進料粒度，隨時調整轉子的轉速，使出料粒度和產量達到狀態。
The electrical motor is connected to the rotor by means of fluid coupling for soft start. The mill can be also driven through frequency converter to modify at time rotation speed of the rotor for optimizing the crushed product size and output according to the hardness and size of the feed material.
¨ 減振平臺Shock Absorption Device
減振平臺上配有一定數量的彈簧組，可大幅降低動負荷和噪音。
Shock absorption base frame is fitted with spring units in given quantities for lowering down motional load and noise effectively.

技術性能TECHNICAL DATA
型號
Mill Type PCFK1608 PCFK1612 PCFK1616 PCFK1618 PCFK1818
破碎物料
Feed Materials 煤、焦炭、石灰石、石膏、鹽、礦石等
Coal, coke, limestone, gypsum,salt,ore and etc.
給料粒度
Size of Feed Material (mm) ≤80
出料粒度
Product Size (mm) ≤8（93%≤3）
轉子直徑
Diameter of Rotor (mm) 1600 1600 1600 1600 1800
轉子長度
Length of Rotor (mm) 865 1265 1665 1865 1865
生產能力（t/h）
Output (t/h) 80-120 130-180 200-300 300-400 400-450

電機
E-motor 型號
Type YKK4006-8 YKK405S-8 YKK560-8 YKK500-8 YKK560-8 YKK560-8
功率
Power (kw) 220 355 450 560/630/710 800
轉速
Rotation Speed (rpm) 740 740 740 740 740
電壓（V）
Voltage (V) 6000 6000 6000/10000 6000/10000 6000/10000
液力偶合器
Fluid Coupling YOX875 YOX1000 YOX1000 YOX1150 YOX1150
電液推桿
Electro-hydraulic Pushing Lever DYPX2500-35 DYPX2500-35 DYPX3000-35 DYPX4000-35 DYPX4000-35
