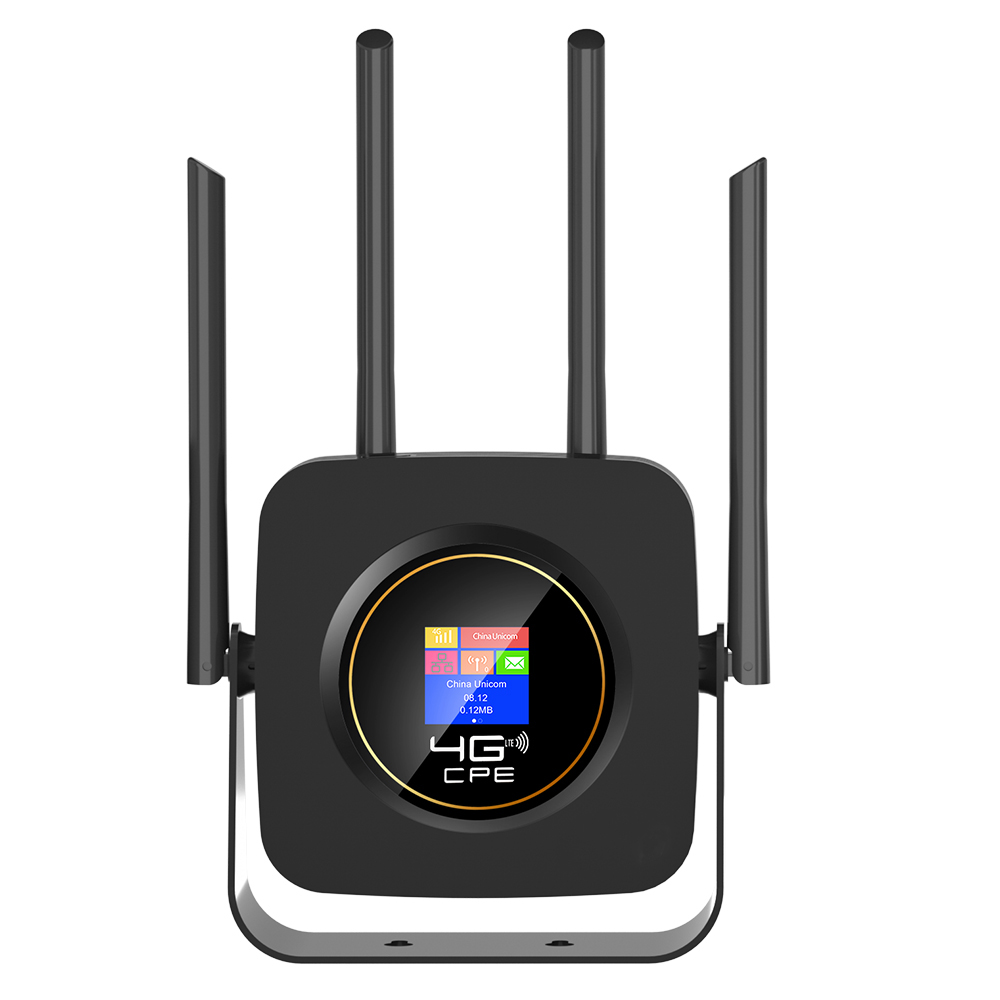

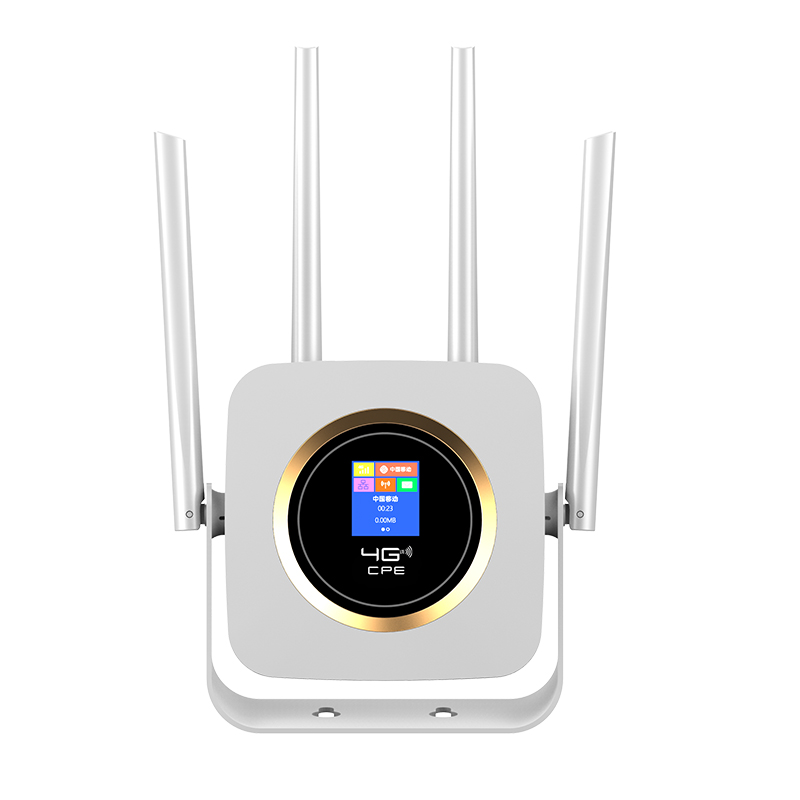

適合家用商用 智能4GCPE 華創(chuàng)翼聯(lián)帶顯示屏4G可插卡 適合家用商用可支持戶外

Hardware Platform

HW_VER

HC-CPF903

MTK Chipset

MT6735WM

RAM/ROM

4GByte EMMC+512MByte DDR2

Band

FDD LTE:                                                                                                                                                                         B1,B3,B5,B7,B8,B20

TDD LTE:                                 B38,B39,B40,B41

WCDMA:

B1,B5,B8

GSM:

900/1800Mhz

3GPP

3GPP R9                                                        Cat.4

3GPP R9                                                        Cat.4

3GPP R7&R8                                                                     HSDPA Cat.24(64QAM)                                             HSUPA Cat.7(16QAM)

3GPP2

Transfer rate

up to 150Mbps DL                                                 up to 50Mbps UL

up to 150Mbps DL                                                 up to 50Mbps UL

HSDPA up to 42.2Mbps DL                                                          HSUPA up to 11.5Mbps UL

3.1Mbps DL

Wi-Fi Chipset

MT6625L

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi rate

up to 150Mbps

Encryption

Wi-Fi Protected Access? (WPA/WPA2)2

Antenna

2pcs*2.4G Wifi antennas, 2pcs* LTE antennas

Customization

Smart system, strong customization ability

Display

LCD

Color display

LED

LED

Port

Button

1 Power on/off button, 1 Reset button

SIM slot

1 SIM slot, 2 SIM slot as optional(battery and 2 sim slots can’t be together)

USB port

USB TYPE A (5V 1A IN)

DC

12V 1A IN

RJ45

1* WAN/LAN port

Battery

3000m, 6-8hours working time

PS. The battery does not support hot-plug

Internet

Wi-Fi

Wi-Fi AP，Max 10 users

SSID

4G-CPE-XXXX（last 4 digits of the IMEI number）

WIFI password

1234567890

Operating Environment

working temperature

-10°C to 65°C

working height

Current tested max height 3000m (10,000 inches)

Operation system

PC Users:                                   A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10

MAC Users:                               A Mac with  OS X v10.5.7,OS X Lion v10.7.3 or later

IPAD Uers:                                                        An iPhone, iPad, or iPod touch with iOS 5 or later

Android Uers:                          An mobile Phone or Tablet PC with Android 2.3 or later

Operation Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 , Chrome 40.0 ,Safari or above

Software Platform

System

Android 6.0

WEB

Gateway

http://192.168.199.1

Log in

Password：admin ( passord modification reqested to done at first loging as default setting
Language(Chinese/English)

Status

Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users

                            Networks

APN confirguration: International roaming switch, APN, User name, Password,  Authorization type modification, New APN, Restore defaulf APN parameters.
Traffic statistics:
Traffic Limitation: Afering reaching the set value, limit the speed as set.

Wifi

WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS
WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet.

Ethernet mode

System Manage

Login password management: User name, password modification
System operation: Restart, Shutdown, Restore factory setting
System Information: Check software version, WLAN MAC address, IMEI NO.
Phonebook setting: New, modify, look up, delete contact
GPS cool: GPS function turn on/off

SMS Management

SMS create, delete, send
