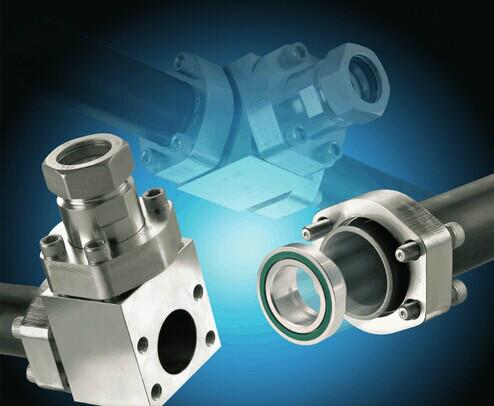

供應上海派克高壓大尺寸液壓焊接接頭Parflange F37

Parflange F37接頭  【產品簡介】  Parflange F37主要為高壓大尺寸液壓管路而開發，不必再為傳統焊接工藝中的探傷、變形、管道清洗、打壓試驗等問題所困擾，是艦船及大型機械的理想選擇。    【詳細說明】 Parflange F37接頭  Parflange F37主要為高壓大尺寸液壓管路而開發，不必再為傳統焊接工藝中的探傷、變形、管道清洗、打壓試驗等問題所困擾，是艦船及大型機械的理想選擇。 遵循標準：ISO 6162–1; SAE J518; ISO 6162-2; ISO 6164  尺寸范圍：38mm-140mm 工作壓力：420 bar 材質：碳鋼、不銹鋼  Robust technology is the foundation of Parker CPS. Parflange F37 non-welded piping systems utilize standard SAE Code 61/62, ISO 6162 and ISO 6164 flange interfaces.Parflange F37 is fully complemented with Parker’s fabrication equipment and a broad range of interconnect components,valves, clamps and seamless tubes.  Parker’s Parflange F37 product range includes certified components capable of providing non-welded piping systems up to 273 mm with wall thicknesses to 25 mm (10" x 1").  The Parflange F37 system utilizes two core connection technologies to achieve leakfree non-welded connections: F37 Flare and F37 Retaining Ring. The Flare Flange produces a smooth, clean, high-strength flared tube end that is fitted with a soft sealed tube insert. For higher-pressure systems, Parker’s F37 Retaining Ring Flange system utilizes a retaining ring for flange retention along with a highly engineered seal carrier for leak-free performance. For low-pressure applications, Parker offers an F37 RR Light Duty series retaining ring flange system specifically designed for weight and space sings, while providing comparable non-welded piping system advantages. 標簽：     上海市液壓焊接接頭   上海市液壓焊接接頭廠家
