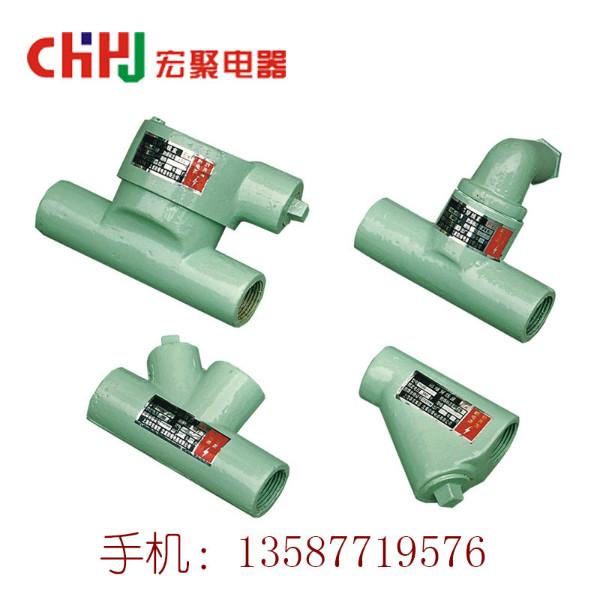

江蘇防爆隔離密封盒

一、適用范圍：

1、性氣體混合物危險場所：1區、2區。
2、性氣體混合物，ⅡA、ⅡB、ⅡC。
3、防爆標志：ExdⅡ

二、產品特點：

1、鋁合金外殼，表面噴塑。
2、采用管螺紋聯接。
3、密封性，防爆性能均極好。

三、主要外形尺寸及安裝形式：

四：型號含義：

■適用范圍

﹒性氣體環境危險場所：1﹑2區

﹒性氣體環境：ⅡA﹑ⅡB﹑ⅡC

﹒溫度組別：T4及以下

﹒*可根據用戶做成粉塵防爆

□Applying scope

﹒Hazardous location:1﹠2

﹒Explosive gas mixture: ⅡA﹑ⅡB﹑ⅡC

﹒Temperature classes:Less than T4

﹒*Can be made dust explosion-proof according to user s requiment

■型號含義 Model Meaning

﹒防護等級:IP55

﹒防腐等級:WF2

﹒使用類別:AC-3、AC-4

﹒額定電壓:220V/380V(如有特殊要求請注明)

﹒額定電流:10A (如有特殊要求請注明)

﹒進線口螺紋:G3/4(如有特殊要求請注明)

□       Main Technical Parameters

﹒Ex-marK:ExdeIIBT6

﹒Protection grade:IP55

﹒Corrosion-proof grade:WF1

﹒Using sort:AC-3、AC-4

﹒Rated voltage:220V/380V(Please note when special request)

﹒Rated current:10A(Please note when special request)

﹒Ingress thread specification:G3/4(Please note when special request)

■安裝、使用與維修

﹒安裝前應檢查本產品銘牌上所列基本數據是否與實際使用條件相符

﹒產品應可靠接地

﹒無論何種接線須將引入裝置密封圈壓。

﹒維修時必須切斷前級電源后開蓋

﹒引入裝置密封圈和橡膠墊均采用耐油橡膠3001制造，用戶在使用、

維修過程中若發現老化應與制造廠聯系定購，并及時更換以確保防

爆性能

﹒海拔不超過2000m

﹒周圍環境溫度為-20～+40⁰C

﹒周圍空氣相對濕度不大于95%

﹒在無顯著搖動和沖出振動的地方

□Installation usage, maintenance.

﹒Check the data before install it.

﹒Product should be link to ground.

﹒Cable should pressurized in to airproof quoit.

﹒cut off power before maintenance.

﹒In-build System and the rubber circle are made of oil-proof 3001, you

should contact our factory if the airproof quoit is damaged.

﹒The altitude is not over2000m

﹒The environment temperature is-20～+40⁰C

﹒The relative humidity of the air around the equipment is not over95%

﹒No distinct shaking,concussion and libration

﹒Corrosion-proof grade:WF1

﹒Using sort:AC-3、AC-4

﹒Rated voltage:220V/380V(Please note when special request)

﹒Rated current:10A(Please note when special request)

﹒Ingress thread specification:G3/4(Please note when special request)

■安裝、使用與維修

﹒安裝前應檢查本產品銘牌上所列基本數據是否與實際使用條件相符

﹒產品應可靠接地

﹒無論何種接線須將引入裝置密封圈壓。

﹒維修時必須切斷前級電源后開蓋

﹒引入裝置密封圈和橡膠墊均采用耐油橡膠3001制造，用戶在使用、

維修過程中若發現老化應與制造廠聯系定購，并及時更換以確保防

爆性能

﹒海拔不超過2000m

﹒周圍環境溫度為-20～+40⁰C

﹒周圍空氣相對濕度不大于95%

﹒在無顯著搖動和沖出振動的地方

□Installation usage, maintenance.

﹒Check the data before install it.

﹒Product should be link to ground.

﹒Cable should pressurized in to airproof quoit.

﹒cut off power before maintenance.

﹒In-build System and the rubber circle are made of oil-proof 3001, you

should contact our factory if the airproof quoit is damaged.

﹒The altitude is not over2000m

﹒The environment temperature is-20～+40⁰C

﹒The relative humidity of the air around the equipment is not over95%

﹒No distinct shaking,concussion and libration
