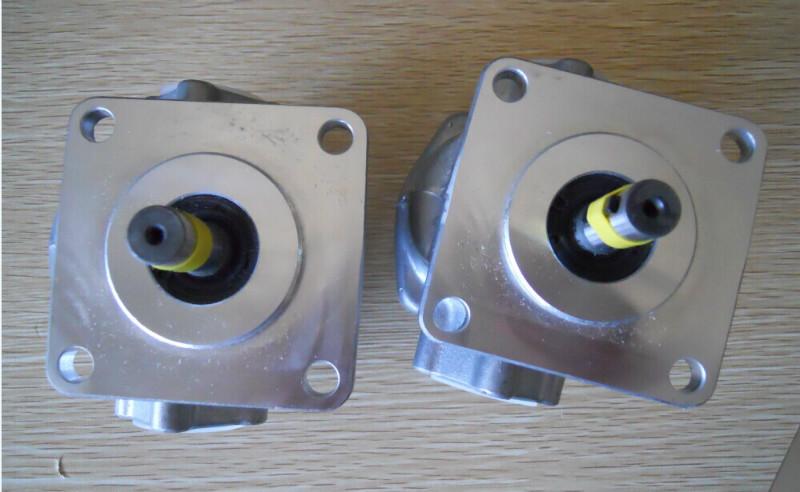

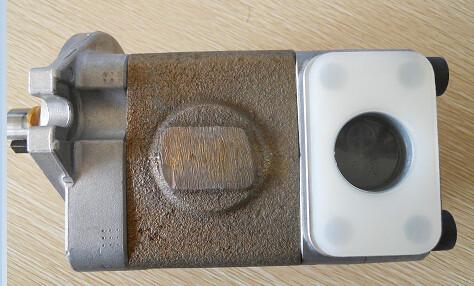

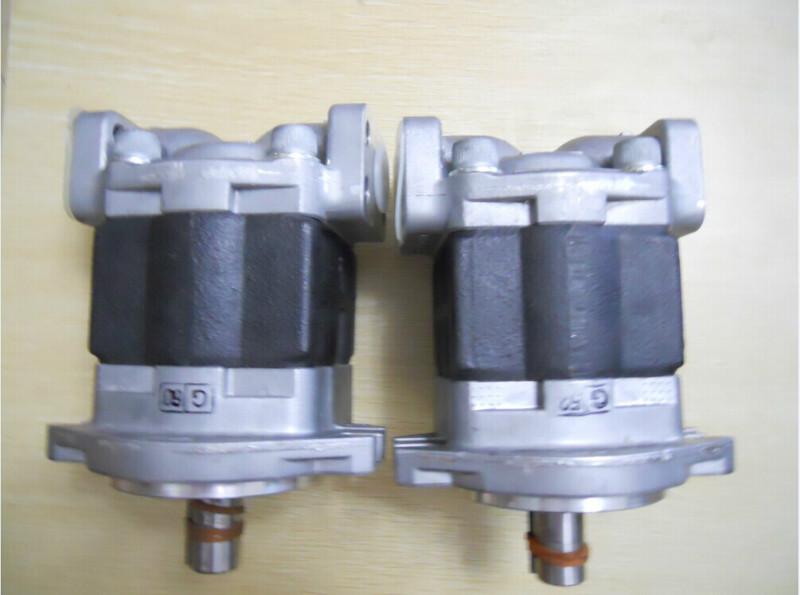

供應日本島津SHIMADZU齒輪泵

日本島津SHIMADZU齒輪泵

廈門乾球自動化科技有限公司現代理日本島津SHIMADZU齒輪泵，本公司理各產品，產品種類豐富，歡迎來電咨詢蘇工，我們將為您提供質的價格和貨期。

型號說明

GPY-8-R

GPY系列齒輪油泵

油泵排量：cm3 /r

旋轉方向

R：軸端看順時針

L：軸端看反時針

型號説明

GPY系列 8 R

GPY系列定量齒輪泵 參照規格表 R：順時針 L：逆時針

規格説明

型號 排量 ml/rev 使用壓力Mpa 轉速 重量Kg

額定持壓 瞬間

GPY-3 2.98 20.6 22.6 700 3000 1.2

GPY-4 4.09 500 1.2

GPY-5.8 5.77 1.2

GPY-7 7.07 1.2

GPY-8 8.01 1.2

GPY-9 8.94 1.4

GPY-10 10.06 1.4

GPY-11.5 11.55 2500 1.4

SGP1型系列齒輪泵是一種具有軸向間隙自動補償和徑向液壓平衡的外嚙合齒輪泵，采用了三開式結構，軸套內裝有DU襯套，側板為雙金屬材料；前蓋、后蓋為鋁合金壓鑄件，中間體為鑄鐵件；從而有效地提高了齒輪泵的性能指標和可靠性。

型號 壓力 額定壓力 排量 配管尺寸 容許轉數rpm 重量

(MPa) （MPa） m /rev 入口 出口

　 L型 F型 L型 F型

SGP1A16 24.5 20.6 16.2 25 PT1 19 PT3/4 500 4000 3.3

SGP1A18 24.5 20.6 18.3 25 PT1 19 PT3/4 500 4000 3.4

SGP1A20 24.5 20.6 20,4 25 PT1 19 PT3/4 500 4000 3.5

SGP1A23 24.5 20.6 23.7 25 PT1 19 PT3/4 400 4000 3.7

SGP1A25 24.5 20.6 24.9 25 PT1 19 PT3/4 400 3500 4

SGP1A27 24.5 20.6 27.8 25 PT1 19 PT3/4 400 3500 4

SGP1A30 24.5 20.6 29.9 25 PT1 19 PT3/4 400 3000 4.1

SGP1A32 24.5 20.6 33.2 25 PT1 19 PT3/4 400 3000 4.2

SGP1A34 20.6 18.6 34.1 25 PT1 19 PT3/4 400 3000 4.3

SGP1A36 20.6 17.2 36.6 25 PT1 19 PT3/4 400 3000 4.5

型 號 理論排量 mL/r 額定壓力MPa 壓力 MPa 轉速 r/min 轉速 r/min

SGP1-16 15.9 20.5 24.53 4000 400

SGP1-18 17.9

SGP1-20 20

SGP1-23 23.3

SGP1-25 24.5 3500

SGP1-27 27.3 3500

SGP1-28.2 28.2 3000

SGP1-30 29.2

SGP1-30.8 30.4

SGP1-31.9 31.5

SGP1-32 32.4

SGP1-34 33.2

SGP1-36 35.7



型式 理論吐出容積

(cm3/rev) 定格壓力

(MPa) 瞬間壓力

(MPa) 回轉數min 入口壓力

MPa 重量

kg

min max

SGP1-16 16.20 20.6 24.5 500 4000 -0.02~0.2 3.30

SGP1-18 18.30 3.40

SGP1-20 20.40 3.50

SGP1-23 23.70 400 3.70

SGP1-25 24.90 3500 4.00

SGP1-27 27.80 4.00

SGP1-30 29.90 3000 4.10

SGP1-32 33.20 4.20

SGP1-34 34.10 20.6(18.6) 4.30

SGP1-36 36.60 20.6(17.2) 4.50



具體型號:

SGP1-25F1H1-L

SGP1-25F1H1-R

SGP1-25F1H2-L

SGP1-25F1H2-R

SGP1-25F1H5-L

SGP1-25F1H5-R

SGP1-25F2H1-L

SGP1-25F2H1-R

SGP1-25F2H2-L

SGP1-25F2H2-R

SGP1-25F2H5-L

SGP1-25F2H5-R

SGP1-25D1H1-L

SGP1-25D1H1-R

SGP1-25D1H2-L

SGP1-25D1H2-R

SGP1-25D1H5-L

SGP1-25D1H5-R

SGP1-25D2H1-L

SGP1-25D2H1-R

SGP1-25D2H2-L

SGP1-25D2H2-R

SGP1-25D2H5-L

SGP1-25D2H5-R

SGP1A25F1H1AL

SGP1A25F1H1AR

SGP1A25F1H2-L

SGP1A25F1H2-R

SGP1A25F1H5-L

SGP1A25F1H5-R

SGP1A25F2H1AL

SGP1A25F2H1AR

SGP1A25F2H2-L

SGP1A25F2H2-R

SGP1A25F2H5-L

SGP1A25F2H5-R

SGP1A25D1H1AL

SGP1A25D1H1AR

SGP1A25D1H2-L

SGP1A25D1H2-R

SGP1A25D1H5-L

SGP1A25D1H5-R

SGP1A25D2H1AL

SGP1A25D2H1AR

SGP1A25D2H2-L

SGP1A25D2H2-R

SGP1A25D2H5-L

SGP1A25D2H5-R

SGP1-27F1H1-L

SGP1-27F1H1-R

SGP1-27F1H2-L

SGP1-27F1H2-R

SGP1-27F1H5-L

SGP1-27F1H5-R

SGP1-27F2H1-L

SGP1-27F2H1-R

SGP1-27F2H2-L

SGP1-27F2H2-R

SGP1-27F2H5-L

SGP1-27F2H5-R

SGP1-27D1H1-L

SGP1-27D1H1-R

SGP1-27D1H2-L

SGP1-27D1H2-R

SGP1-27D1H5-L

SGP1-27D1H5-R

SGP1-27D2H1-L

SGP1-27D2H1-R

SGP1-27D2H2-L

SGP1-27D2H2-R

SGP1-27D2H5-L

SGP1-27D2H5-R

SGP1A27F1H1AL

SGP1A27F1H1AR

SGP1A27F1H2-L

SGP1A27F1H2-R

SGP1A27F1H5-L

SGP1A27F1H5-R

SGP1A27F2H1AL

SGP1A27F2H1AR

SGP1A27F2H2-L

SGP1A27F2H2-R

SGP1A27F2H5-L

SGP1A27F2H5-R

SGP1A27D1H1AL

SGP1A27D1H1AR

SGP1A27D1H2-L

SGP1A27D1H2-R

SGP1A27D1H5-L

SGP1A27D1H5-R

SGP1A27D2H1AL

SGP1A27D2H1AR

SGP1A27D2H2-L

SGP1A27D2H2-R

SGP1A27D2H5-L

SGP1A27D2H5-R

SGP1-30F1H1-L

SGP1-30F1H1-R

SGP1-30F1H2-L

SGP1-30F1H2-R

SGP1-30F1H5-L

SGP1-30F1H5-R

SGP1-30F2H1-L

SGP1-30F2H1-R

SGP1-30F2H2-L

SGP1-30F2H2-R

SGP1-30F2H5-L

SGP1-30F2H5-R

SGP1-30D1H1-L

SGP1-30D1H1-R

SGP1-30D1H2-L

SGP1-30D1H2-R

SGP1-30D1H5-L

SGP1-30D1H5-R

SGP1-30D2H1-L

SGP1-30D2H1-R

SGP1-30D2H2-L

SGP1-30D2H2-R

SGP1-30D2H5-L

SGP1-30D2H5-R

SGP1A30F1H1AL

SGP1A30F1H1AR

SGP1A30F1H2-L

SGP1A30F1H2-R

SGP1A30F1H5-L

SGP1A30F1H5-R

SGP1A30F2H1AL

SGP1A30F2H1AR

SGP1A30F2H2-L

SGP1A30F2H2-R

SGP1A30F2H5-L

SGP1A30F2H5-R

SGP1A30D1H1AL

SGP1A30D1H1AR

SGP1A30D1H2-L

SGP1A30D1H2-R

SGP1A30D1H5-L

SGP1A30D1H5-R

SGP1A30D2H1AL

SGP1A30D2H1AR

SGP1A30D2H2-L

SGP1A30D2H2-R

SGP1A30D2H5-L

SGP1A30D2H5-R

SGP1-32F1H1-L

SGP1-32F1H2-L

SGP1-32F1H1-R

SGP1-32F1H2-R

SGP1-32F1H5-L

SGP1-32F1H5-R

SGP1-32F2H1-L

SGP1-32F2H1-R

SGP1-32F2H2-L

SGP1-32F2H2-R

SGP1-32F2H5-L

SGP1-32F2H5-R

SGP1-32D1H1-L

SGP1-32D1H1-R

SGP1-32D1H2-L

SGP1-32D1H2-R

SGP1-32D1H5-L

SGP1-32D1H5-R

SGP1-32D2H1-L

SGP1-32D2H1-R

SGP1-32D2H2-L

SGP1-32D2H2-R

SGP1-32D2H5-L

SGP1-32D2H5-R

SGP1A32F1H1AL

SGP1A32F1H1AR

SGP1A32F1H2-L

SGP1A32F1H2-R

SGP1A32F1H5-L

SGP1A32F1H5-R

SGP1A32F2H1AL

SGP1A32F2H1AR

SGP1A32F2H2-L

SGP1A32F2H2-R

SGP1A32F2H5-L

SGP1A32F2H5-R

SGP1A32D1H1AL

SGP1A32D1H1AR

SGP1A32D1H2-L

SGP1A32D1H2-R

SGP1A32D1H5-L

SGP1A32D1H5-R

SGP1A32D2H1AL

SGP1A32D2H1AR

SGP1A32D2H2-L

SGP1A32D2H2-R

SGP1A32D2H5-L

SGP1A32D2H5-R

SGP1-34F1H1-L

SGP1-34F1H2-L

SGP1-34F1H1-R

SGP1-34F1H2-R

SGP1-34F1H5-L

SGP1-34F1H5-R

SGP1-34F2H1-L

SGP1-34F2H1-R

SGP1-34F2H2-L

SGP1-34F2H2-R

SGP1-34F2H5-L

SGP1-34D1H1-L

SGP1-34F2H5-R

SGP1-34D1H1-R

SGP1-34D1H2-L

SGP1-34D1H2-R

SGP1-34D1H5-R

SGP1-34D2H1-L

SGP1-34D1H5-L

SGP1-34D2H1-R

SGP1-34D2H2-L

SGP1-34D2H2-R

SGP1-34D2H5-L

SGP1-34D2H5-R

SGP1A34F1H1AL

SGP1A34F1H1AR

SGP1A34F1H2-L

SGP1A34F1H2-R

SGP1A34F1H5-L

SGP1A34F1H5-R

SGP1A34F2H1AL

SGP1A34F2H2-L

SGP1A34F2H1AR

SGP1A34F2H2-R

SGP1A34F2H5-L

SGP1A34F2H5-R

SGP1A34D1H1AL

SGP1A34D1H1AR

SGP1A34D1H2-L

SGP1A34D1H2-R

SGP1A34D1H5-L

SGP1A34D1H5-R

SGP1A34D2H1AL

SGP1A34D2H1AR

SGP1A34D2H2-L

SGP1A34D2H2-R

SGP1A34D2H5-L

SGP1A34D2H5-R

SGP1-36F1H1-L

SGP1-36F1H1-R

SGP1-36F1H2-L

SGP1-36F1H2-R

SGP1-36F1H5-L

SGP1-36F1H5-R

SGP1-36F2H1-L

SGP1-36F2H1-R

SGP1-36F2H2-L

SGP1-36F2H2-R

SGP1-36F2H5-L

SGP1-36F2H5-R

SGP1-36D1H1-L

SGP1-36D1H1-R

SGP1-36D1H2-L

SGP1-36D1H2-R

SGP1-36D1H5-L
