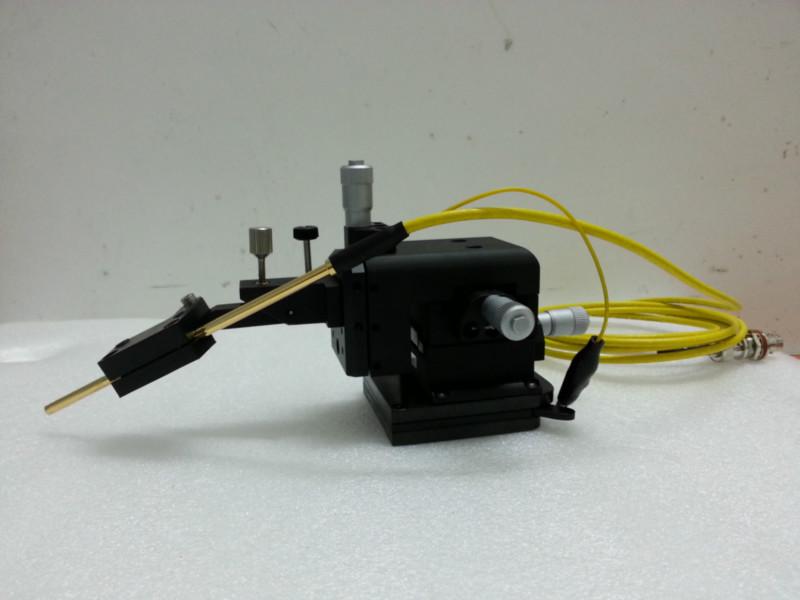

供應進口高精度磁力翻轉(zhuǎn)探針座，磁力吸附，磁力開關(guān)探針座，0.7/2um精度

探針座

*電路/射頻測試針座

*I/O Pad 點測

*電路點測

*射頻測試

*較小的體積

*可以配合同軸/三軸探針夾具使用

X-Y-Z移動行程：12 x 12 x 12mm

絲杠精度：80 Thread / Inch

移動精度：2 微米

尺寸：52寬 x 96長 x 76mm高

重量：350 克

森東寶代理GGB探針

型號如下：

Picoprobe? High Impedance Active Probes:
1 Model 7 and Model 7A (dc to 500 Mhz, 50 ohm)
2 Model 12C (dc to 500 Mhz, 1 Megohm/0.1pF)
3 Model 34A (dc to 3.0 GHz, 10 Megohm/0.1pF)
4 Model 35 (dc to 26.0 GHz, 1.25 Megohm/0.05pF)
5 Model 18C and Model 19C (dc to 350 Mhz, 10 femtoamps/0.02pF)
6 Model 28 and Model 29 (dc to 1 Ghz, 10 femtoamps/0.04pF)

Microwe Testing:
7 Model 10 (dc to 11 GHz )
8 Model 40A (dc to 40 GHz / 2.9mm K connector input) Now ailable with nickel alloy contacts for probing aluminum pads
9 Dual / Differential Microwe Probe (two microwe probes on one itioner - 40A, 50A, 67A, or 110H)
10 Model 40M (ultra low loss - dc to 40 GHz)
11 Model 50A (dc to 50 GHz / 2.4 mm connector input)
12 Model 67A (dc to 67 GHz / 1.85 mm V connector input)
13 Model 110H (dc to 110 GHz / 1.0 mm connector input)
14 Integrated Balun Probes

15 Multi-Contact Wedge (combines multiple RF and DC contacts - dc to 40, 50, 67 or 110 GHz)
16 Probe Cards (surrounds a circuit with high-density RF and DC contacts - dc to 40, 50, 67 or 110 GHz)

17 Model 50 (33 - 50 GHz / WR-22 weguide input)
18 Model 75 (50 to 75 GHz / WR-15 weguide input)
19 Model 90 (60 to 90 GHz / WR-12 weguide input)
20 Model 120 (75 to 120 GHz / WR-10 weguide input)
21 Model 140(90 to 140 GHz / WR-8 weguide input)
22 Model 170 (110 to 170 GHz / WR-6 weguide input)
23 Model 220 (140 to 220 GHz / WR-5 weguide input)
24 Model 325B (220 to 325 GHz / WR-3 weguide input)
25 Model 500B (325 to 500 GHz / WR-2.2 weguide input)
26 Model 1100B (750 to 1100 GHz / WR-1.0 weguide input)

27 Calibration Substrates (for probe tip calibration - ailable in 9 standard models)
28 Differential Calibration Substrates (for two, three or four port probe tip calibrations )

DC Disable Probe Tips:
29 T-4 Series Tungsten Probe Tips (A small diameter Tungsten wire attached to a larger wire body)
30 ST-Series Solid Tungsten Probe Tips (A large diameter solid Tungsten shaft precision tapered to a durable point)

歡迎各位前來咨詢，
