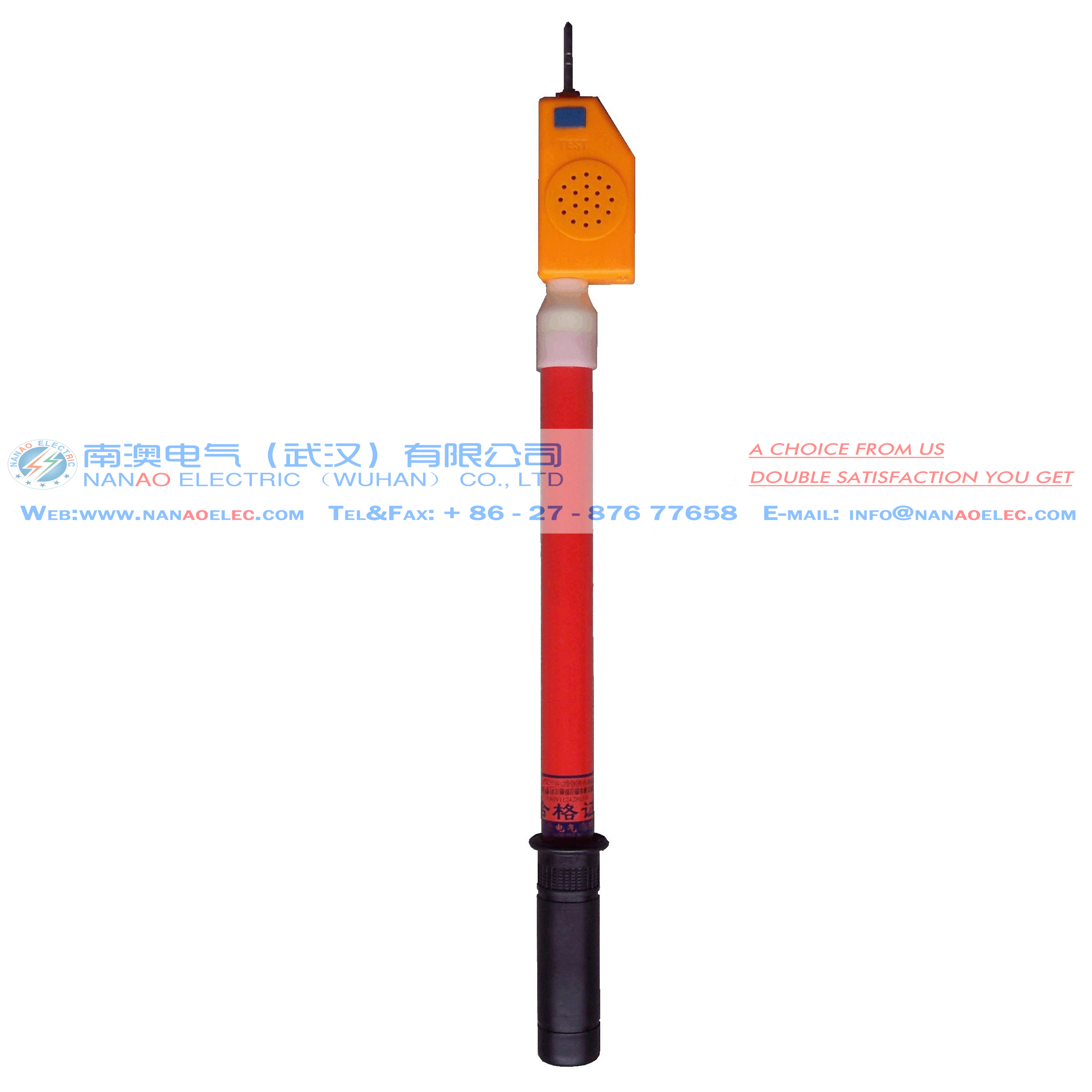

NAECQ系列高壓試驗驗電器    NAECQ series of high-voltage electroscope

用途簡介

高壓試驗驗電器由電子集成電路制成的聲光指示 ，性能穩定、測量數據可靠。具有全電路自檢功能和抗干擾性強等特點。NAECQ系列高壓驗電器適用于 220V-500V 、6kV 、10kV 、35kV 、110kV 、220kV 、500kV 交流輸配電線路和設備的驗電，無論是白天或夜晚、室內變電所站或室外架空線上，都能正確、可靠地為您服務，是電力系統和工礦企業電氣部門必備的安全用具。

高壓驗電器的分類

按照適用電壓等級可分為：0.1-10kV、6kV、10kV、35kV、66kV、110kV、220kV、500kV。

技術參數

（1）6kV

有效絕緣長度：840mm 手柄長度：500mm 節數：5 護環直徑：50mm 接觸電極長度：50mm

（2）10kV

有效絕緣長度：840mm 手柄長度：500mm 節數：5 護環直徑：50mm 接觸電極長度：50mm

（3）35kV

有效絕緣長度：1400mm 手柄長度：500mm 節數：5 護環直徑：50mm 接觸電極長度：50mm

（4）110kV

適用電壓等級：110kV 回態長度60cm 伸態長度200cm

（5）220kV

適用電壓等級：220kV 回態長度80cm 伸態長度300cm

（6）500kV

適用電壓等級：500kV 回態長度160cm 伸態長度720cm

NAECQ series of high-voltage electroscope

Brief ioduction

HV Detectors made by an electronic integrated circuit sound light indication, stable and reliable. With full circuit self-test function and anti-jamming features. NAECQ series HV Detectors for electric inspection 220V-500V, 6kV, 10kV, 35kV, 110kV, 220kV, 500kV AC transmission and distribution lines and equipment, whether it is day or night, indoors or outdoors overhead line substation stations are correctly and reliably serve you, the electrical power system and the industrial and mining sectors necessary safety equipment.

Classification of NAECQ series H.V Detectors

Accordance with the applicable voltage level can be divided into :0.1-10kVH. V Detectors, 6kV, 10kVH.V Detectors, 35kV, 66kVH.V Detectors, 110kV, 220kVH.V Detectors, 500kVH.V Detectors.

Can be divided according to type: NAECQ-2 (green light Indication type).

Technical Parameters

(1) 6kV H.V Detectors

Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(2) 10kV H.V Detectors

Effective insulation Length: 840mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(3) 35kV H.V Detectors

Effective insulation Length: 1400mm; Handle length: 500mm; Section: 5; retaining ring diameter: 50mm; contact electrode length: 50mm

(4) 110kV H.V Detectors

Voltage rating: 110kV; back state length: 200cm; stretched length: 60cm

(5) 220kV H.V Detectors

Voltage rating: 220kV; back state length: 300cm; stretched length: 80cm

(6) 500kV H.V Detectors

Voltage rating: 500kV; back state length: 160cm;stretched length: 720cm
