fat-32a fiber access terminal - 32cores

descrjption

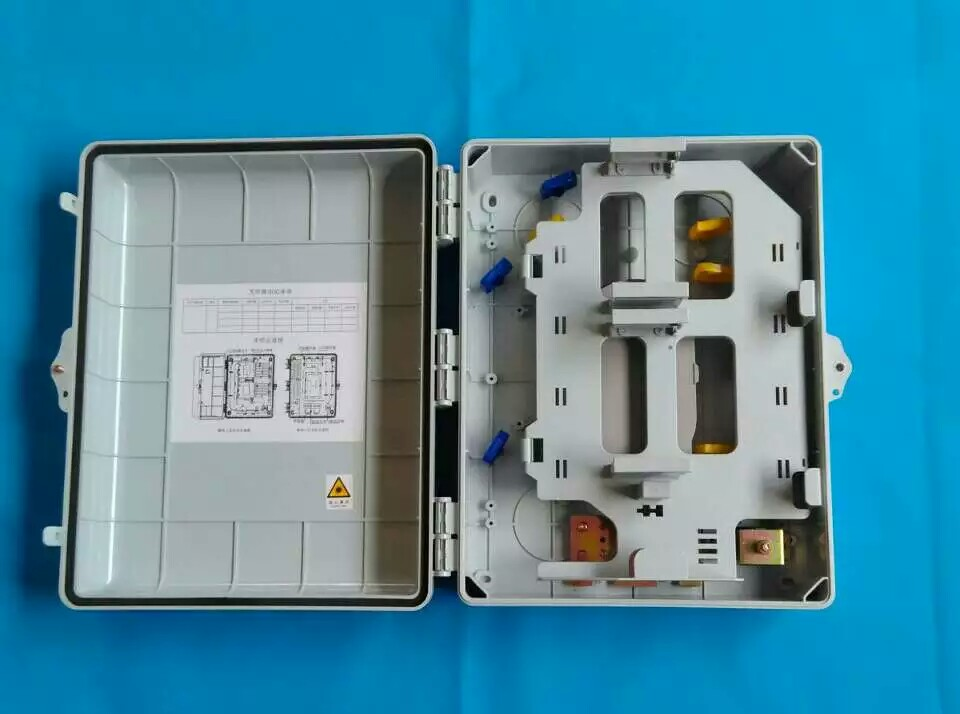

fat-32a fiber access termination box is able to hold up to 32

subscribers. it is used as a termination point for the feeder cable to connect with drop cable in fttx network system. it

integrates fiber splicing, splitting, distribution, installation

size storage and cable connection in one solid protection

box.

features

 water-proof design with ip-65 protection level.

 integrated with splice sette and cable management rods.

 manage fibers in a reasonable fiber radius condition.

 easy to maintain and extend the capacity.

 fiber bend radius cool more than 40mm.

 suitable for the fusion splice or mechanical splice.

4 pcs of / 1*8 2 pcs of 1*16 splitter can be installed as an

option.

 efficient cable management.

 1 port eance for feeder cable and 2 ports for drop cable.

configuration

material	size	max capacity		weight	color
pc +abs	a*b*c(mm)	sc	d*e (mm)	2.17kg
420*320*125	32 ports	255*380
