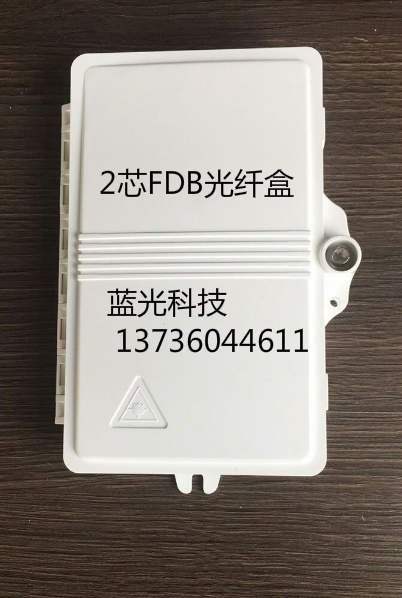

2芯4芯6芯FDB光纖分纖箱哪家有，2芯FDB光纖終端盒 2芯光纖分纖箱

1、DeSCRJPTion：

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTx network building.

2、Features：

1、 Total enclosed structure.

2、 Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4、 Cable，pigtails，patch cords are running through own path without disturbing each other, sette type SC/LC/PLC adaptor installation, easy maintenance.

5、 Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

6.  Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3、Specification：

1、Environmental requirement

working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

Atmospheric pressure：70KPa～106Kpa

2、Main technical datasheet

Insertion loss：≤0.2dB

UPC return loss：≥50dB

APC return loss：≥60dB

Life of insertion and extraction：＞1000 times

3、Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 1000MΩ/500V（DC）；

IR≥1000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover

；U≥3000V

4、Configuration table：

Table 1 Model and configuration
