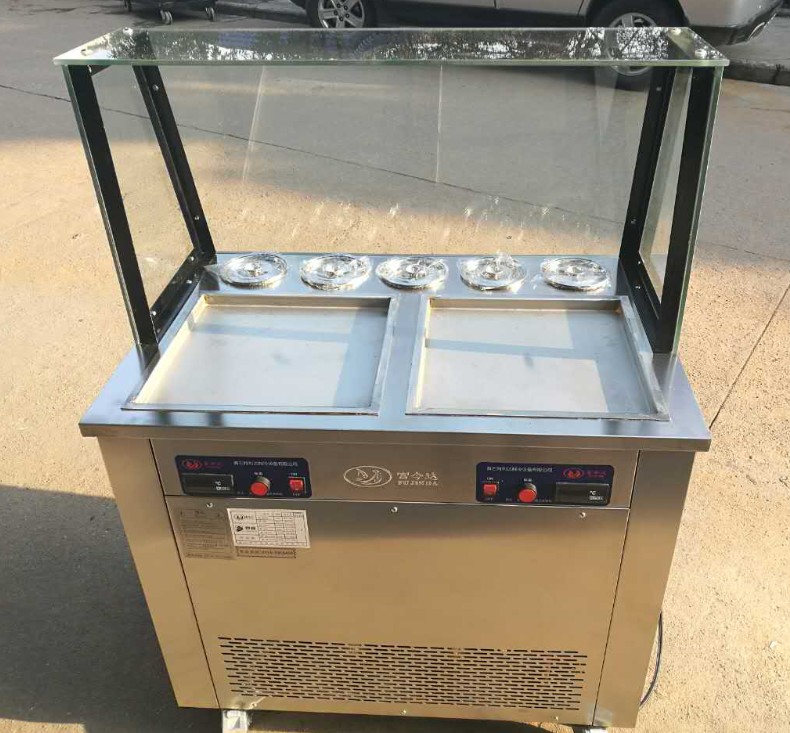

武漢大功率炒酸奶機廠家直銷，采用優質進口全新壓縮機，炒冰激凌卷機大功率速度快

中國出口炒冰激凌卷機

尊敬的用戶你好：

歡迎你選用我們廠生產的制冷設備，我們廠是專業生產冰激凌、冷熱飲機、炒冰機。雪花酪機等。本公司以“、信譽、顧客至上”為宗旨，真誠為用戶提供的產品和優質的售后服務，使用前保管好說明書，已被隨時參閱。

請?jiān)敿?xì)閱讀使用說明書：

一、注意事項和安全警告

安裝、使用產品前，請閱讀使用說明書。

1、確保使用電源與機器上銘牌相同。

2、保持工作環境通風良好，干燥清潔，避免熱源及陽光直射，各進風柵與墻壁或類似障礙物應保持20cm以上的距離。

3、機器搬運及移動過程中，傾斜不允許超過45度。4

4、機器運轉時，電源電壓應保證198-242V。

5、機器使用的電源插座，必須是單相三孔插座，其中接地的保護插腳必須用線通過有關途徑與地面牢靠的鏈接，不得與其他電器插同一插座上。

6、除霜開關按下后，機器開始除霜，除霜完畢應立即關掉除霜開關（切不可長期使用除霜開關，否則會導致壓縮機的損壞）。

7、為保證人身安全，請將本機可靠接地。

8、如果電源軟線損壞，為避免危險，必須由制作廠家進行維修或由其他相關專業人員來更換。

9、機器運轉時，切記將硬物或類似物品伸入進出風柵和進料口柵格內。

10、維修或保養機器之前，請務必切斷電源。

二、使用條件

泰卷機作為一種商用制冷設備，它能在一下條件下正常工作

當環境溫度，進料溫度都處在允許范圍內較低值，通風散熱條件良好，供應電源穩定以及工作環境潔凈，機器的工作效率及使用壽命都將大幅度提高，同時耗電量也會因此而減少。

三、檢查及安裝

A、開箱及檢查

1、剪斷并拆開緊固包裝箱的打包帶。

2、拆下包裝紙箱。

3、去掉減震泡沫塊，剝離套在炒冰機上面的包裝袋。

4、請?jiān)敿?xì)檢查炒冰機外觀是否有損壞。

5、打開附件包，取出裝箱清單，核對隨機附件。

B、安裝

1、電器安裝要穩固，以保證機器工作正常，而不發生意外。

2、機器的位置要有良好的通風散熱條件，避開熱源及陽光直射，各出風口與墻壁或類似障礙物應有都的20cm以上距離。

3、將機器的電源線對應鏈接好，并確保可靠接地

4、電源電壓不得低于200V，頻率要符合機器的工作要求。

為了您和他人的安全，請確保機器接地良好，所有外接線及電器應符合國家相關標準

四、操作使用說明

1、將泰卷機的電源插頭插入配有接地三孔插座內

2、電源接通后，打開炒卷機開關，讓機器先預冷10-15分鐘左右，溫度顯示-26度或以下

3、將配制好的漿料倒入鍋內進行炒冰機內

4、待炒冰卷炒好后，即可用鏟子鏟起來盛入盤中予以食用了

5、如果發現炒好的冰卷與鍋體粘連，這時需要打開除霜開關進行除霜（每次除霜大約4-6秒），除霜后應立即關閉除霜開關，方可連續炒冰激凌卷

五、基本配方

在此我們向你介紹一套經濟實用的配方及具體配料的方法，通過掌握和熟悉該配方和配料的方法后，舉一反三，一定能得心應手的炒出各種風格的冰激凌卷。

基本配方：水果泥（或酸奶）40%   水20%   果醬10%    奶油10%   白糖10%    冰激凌粉10%    香精少許（核桃仁、花生仁、葵花籽仁、芝麻等）

注意：

1、該配方中，水和白糖所占比例已是經濟型，若在降低就會影響炒冰的質量。

2、漿料配比含糖量不得低于10%。

3、通常情況下配制好的漿料溫度為常溫，若將漿料提前預冷，炒冰卷效果更好。

六、清洗、消毒與保養

機器次使用前，應進行一次認真的清洗與消毒，具體方法如下：

1、將適量食品洗滌劑滴入2升左右的溫水中，配置成清洗消毒液

2、將清洗消毒液倒入炒卷鍋中進行清洗

3、清洗完畢，再用清水倒入鍋中進行涮洗，如此反復操作2次即可

為了保證消費者的健康，提高機器的使用壽命，避免給你帶來不必要的麻煩，請你嚴格按如下說明操作。

1、每天在制作完成后，先將電源關閉，再用清潔的溫?zé)崴逑礄C(jī)器表面，以免過多糖分粘附機器表面。

2、不要用水直接沖洗機器，清洗機器時用濕毛巾擦拭即可。

3、定期清掃機器內部的冷凝器，用螺絲刀拆下圍板，用細毛刷沿著翹片方向掃下灰塵，這樣可以保證機器的制冷功能不受影響。

七、常見故障及排除方法（請?jiān)敿?xì)閱讀說明書）

Dear customer hello:

Welcome you to choose refrigeration equipment produced by our factory, our factory is specializing in the production of ice cream, hot and cold drink machine, ice frying machine. Snowflake cheese machine. The company to "quality first, reputation first, customer first" for the pure, in good faith to provide users with first-class products and quality after-sales service, the use of good care before the specification has been seen at any time.

Please read the instruction manual:

Matters needing attention and safety warning

Please read the instructions before installing and using the product.

1, to ensure that the use of power and machine on the same plate.

2, to maintain a good working environment, dry and clean, to oid heat and direct sunlight, the wind inlet and the wall or similar obstacles should be maintained above 20cm distance.

3, the machine handling and moving process, tilt is not allowed to exceed 45 degrees. Four

4, when the machine is running, the power supply voltage should be guaranteed 198-242V.

The power socket 5, machines, must be a single-phase three hole socket, wherein the grounding protection pin must use special line through the relevant channels and ground solid links, not the same with other electrical plug socket.

6, defrost switch pressed, the machine began to defrost, defrosting should immediately turn off the defrost switch (must not be used for a long time defrost switch, otherwise it will lead to damage to the compressor).

7, in order to ensure personal safety, please put the machine reliable grounding.

8, if the supply cord is damaged, to oid danger, must be produced by the manufacturer for repair or replacement by other related professional.

9, when the machine is running, it will be a hard object or similar items into the import wind and the inlet in the grid.

10, repair or maintenance of the machine, be sure to cut off the power supply.

Two, the use of conditions

As a kind of commercial refrigeration equipment, it can work normally under the condition

When the ambient temperature, the feed temperature is within the allowable range of low value, ventilation conditions, power supply stable and clean working environment, work efficiency and service life of the machine will be greatly improved, and the power consumption will be reduced accordingly.

Three, inspection and installation

A, unpacking and inspection

Pack 1, cut and remove fastening packing box.

2, remove the packaging carton.

3, remove the foam block, peel off the bag on the top of the ice machine.

4, please check the ice machine appearance is damaged.

5, open the package, take out the packing list, check random accessories.

B, installation

1, electrical installation should be stable, in order to ensure the normal operation of the machine, without accident.

2, the location of the machine to have good ventilation and heat dissipation conditions, oid heat and direct sunlight, each outlet and walls or similar obstacles should have more than 20cm distance.

3, the machine power cord corresponding link, and ensure reliable grounding

4, the supply voltage shall not be less than 200V, the frequency to meet the requirements of the machine.

For the safety of you and others, please ensure that the machine is well grounded, and all the external wiring and electrical appliances shall comply with the relevant national standards

Four, operating instructions

1, the power supply plug Thailand rolling machine equipped with a special insert ground socket inside

2, after the power is turned on, turn on the switch, let the machine pre cooling 10-15 minutes or so, the temperature of -26 degrees or below

3, the slurry is prepared into the pot fried ice machine

4, to be fried after the volume of fried ice, that is, shovel shovel can be put into the dish to be eaten

5, if you find a good fried ice roll and pot body adhesion, then need to open the defrost switch for defrosting (each time defrost about 4-6 seconds), after defrosting should immediately turn off the defrost switch, can be continuously fried ice cream roll

Five, the basic formula

Here we ioduce a method of economical and practical formula and specific ingredients to you, the recipe and ingredients familiar by mastering and, by analogy, can be handy fried ice cream rolls of various styles.

Basic formula: fruit puree (or yogurt) 40% water, 20% jam, 10% cream, sugar, 10% ice cream powder, a little flor of a few (walnut, peanut, sunflower seeds, sesame seeds, etc.); (10%)

Be careful：

1, the formula, the proportion of water and sugar is the economy, if the reduction will affect the quality of fried ice.

2, the ratio of sugar content of not less than 10%.

3, under normal circumstances, the preparation of the slurry temperature is normal, if the slurry ead of pre cooling, fried ice roll better.

Six, cleaning, disinfection and maintenance

Before the first use of the machine, a thorough cleaning and disinfection should be carried out, the specific methods are as follows:

1, the right amount of food detergent into 2 liters of warm water, into a cleaning disinfectant

2, the cleaning and disinfection liquid into the frying pan for cleaning

3, after cleaning, washing with water poured into the pot, so repeatedly for 2 times

In order to ensure the health of consumers, improve the service life of the machine, to oid unnecessary trouble, please follow the instructions as follows.

1, every day after the completion of the production, the first power off, and then clean the hot water to clean the surface of the machine, so as to oid excessive sugar adhesion to the surface of the machine.

2, do not wash the machine directly with water, washing machine with a wet towel to wipe.

3, regular cleaning the condenser inside the machine, use a screwdriver to remove the panel, with a fine brush along the direction of fin sweep dust, cooling function so as to ensure the machine is not affected.

Common faults and troubleshooting (please read the instructions)
