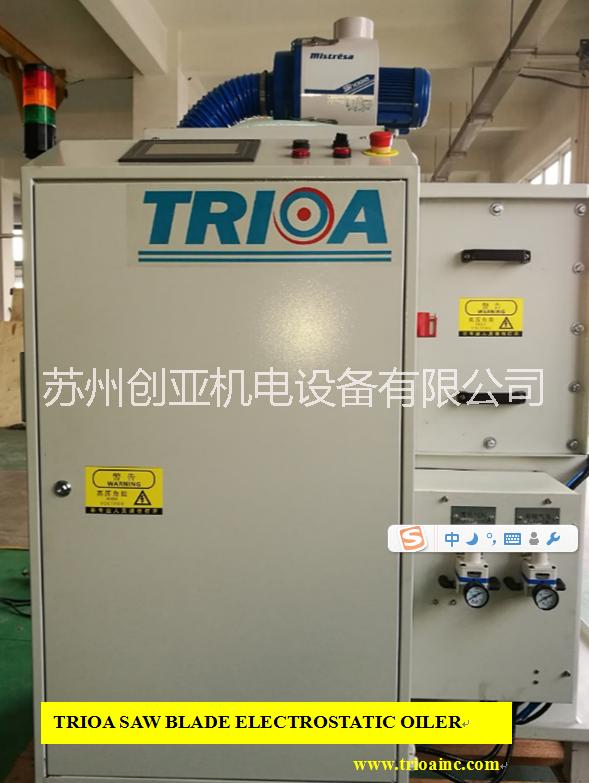

鋸條專業靜電涂油機

    蘇州創亞CSB鋸條靜電涂油機是為提高鋸條，鋸帶及金屬帶條的抗腐蝕性及美觀性而設計，可以做到

目測有油，手觸摸無油的狀態，同時能滿足20h以上的鹽霧實驗而不產生銹蝕。

  CBS Electrostatic oiler was designed to improve corrosion resistance and attractiveness of saw

blades, saw bands and metal bands and capable of achieving the state that there is oil in visual

check but no oil by touching and meeting the requirement that no rust is produced in salt mist test

for more than 20h.

產品組成及特點：

組成與特點：

1. 穿帶機構--方便金屬帶條通過涂油設備

2. 光電感測系統—感測帶條，自動控制涂油的開關

3  油霧霧化及荷電系統—產生荷電的油霧并靜電場里吸附在金屬表面；

4. 涂油調節系統---可以根據設置涂油寬度調節涂油量

5. 高壓電源系統--用于油霧的荷電及油霧的靜電吸附作用；

6. 供油系統--包括供油箱，過濾器及加熱器；

7. 精密計量泵--用于計量不同速度，涂油寬度及涂油量需求下的供油量；

8. 控制系統--HMI設置，PLC自動控制；

9. 油霧回收系統--避免油霧外溢，同時收集的油霧可以循環利用

10. 廢油回收系統—將未吸附的油收集過濾后再循環使用

1. 1. Threg mechanism – to facilitate the metal bands to penetrate the oiling equipment;
2. 1. Photoelectric sensing system– to sense the blade strips and automatically cool the oiling switch;
3. 3. Nozzles-atomizer and charging system– to produce and attach the charged oil mist to the metal surface in the electrostatic field;
4. 4. Oiling adjusting system– to adjust the oil volume according to the set oiling width;
5. 4. High voltage power supply– to charge oil mist and generate electrostatic adsorption effects;
6. 5. Oil supply system– including oil tank, filter and heater;
7. 6. Precision metering pump– used for metering oil supply amount under different speed, oiling width and oil volume requirements;
