適用范圍Application
FSB-1S卡式電表開關FSB-1S-32A 2P
FSB-1S-32帶分勵脫扣器(卡式電表開關)，具有分勵脫扣功能，適用于交流50Hz或60Hz，額定工作電壓為230/400V，額定電流至32A的線路中，對線路進行遠跨度控制分?jǐn)嗷蜃詣?dòng)信號控制分?jǐn)?，同時對線路起過載和短路保護的作用，也可以作為線路的不頻繁操作轉換之用。目前廣泛應用于與IC卡預付費電度表配套使用來控制線路的通斷，是IC卡預付費電度表配套使用的最理想產品。
本產品符合GB32932.1-3205標準.
FSB 1s32milature crcuitbreakerwth shunt release(specal sichforcardtype meter)has funcionof sshunt tripping,is suitable for circuitries ofAC50Hz or60Hz,rated wo  ng voltage is 230/400V andratedcurrentup to 32A,it caries out far-span coolbreaking or automatic signal cool breaking to thecircuitries,while protects the circuitries against overloador short-circuit,it alsocan be used for infrequentchangeover forcircuitries.At present,the productsare widely matched with IC card prepayment wathourmeters and used to cool the making and breakingof arcuities,are ideal supporting products for ICcard prepayment watthour meters.
The products are in conformity with GB32932.1-3205,withintemationaladvanced level.
FSB-1S卡式電表開關FSB-1S-32A 2P
技術參數Technical parameters

斷路器瞬時脫扣器的供貨形式為C型，其他型式用戶可很特殊訂貨；
斷路器的短路分?jǐn)嗄芰?span lang="EN-US">32A、32A、32A、32A、40A,50A,32A為Im6000A；
斷路器過電流保護特殊
Supplying goods of instantaneous release of circuitbreaker is Ctype,other types are ailable by makingspecial orders；
Short-circuit breaking capacity of circuit breaker of32A,32A,32A,32A and 40A,50A,32A is Im 6000A:
Over-curent protection characteristic of circuit breaker
型號及其含義Code and implication

FSB-1S卡式電表開關FSB-1S-32A 2P
FS  B – 1  S – 32A
│ │ │ │ └────殼架等級電流Shuell frame level current
│ │ │ └──────分勵脫扣器shunt tripping device
│ │ └────設計序號Design seial number
│ └────小型斷路器小型斷路器Miniature Circuit Breaker
└─────────企業特征代號Enterprise symbol
注：FSB1S-32為控制信號斷電延時脫扣。

主要規格：斷路器按額定電流ln分：32A、32A、32A、32A、40A、50A、32A。
Note:FSB1S-32 is of cool signal power failure timedelay tripping.
Main specifications:circuit breakers can be dividedaccording tothe rated current In:32A,32A,32A,32A,40A,50A,32A.

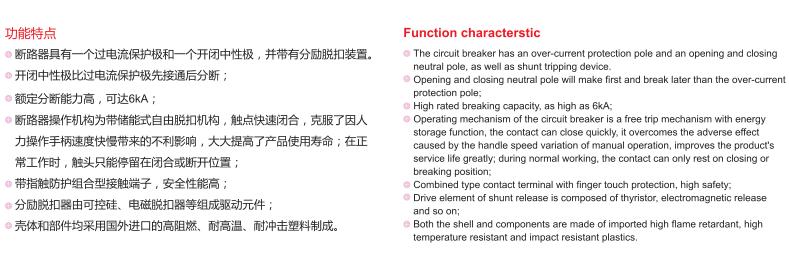

功能特點Function characterstic
FSB-1S卡式電表開關FSB-1S-32A 2P
1.斷路器具有一個過電流保護極和一個開閉中性極，并帶有分勵脫扣裝置。
2.開閉中性極比過電流保護極先接通后分?jǐn)啵?span lang="EN-US">
3.額定分?jǐn)嗄芰Ω?，可達6kA；
4.斷路器操作機構為帶儲能式自由脫扣機構，觸點快速閉合，克服了因人力操作手柄速度快慢帶來的不利影響，大大提高了產品使
5.帶指觸防護組合型接觸端子，安全性能高
6.分勵脫扣器由可控硅、電磁脫扣器等組成驅動元件；
7.殼體和部件均采用國外進口的高阻燃、耐高溫、耐沖擊塑料制成。
The circuit breaker has an over-curent protection pole and an opening and closing
neutral pole,as well as shunt tripping device.
Opening and closing neutral pole wil make first and break later than theover-current
protection pole；
High rated breaking capacity,as high as 6kA;
Operating mechanism of the circuit breaker is a free trip mechanism with energy
storage function,the contact can close quickly,it overcomes the adverseeffectcaused by the handle speed variation of manual operation,improves the productsservice life greatly；during normal wo  ng,the contact can only rest on closing orbreaking   ition；
Combined type contact terminal with finger touch protection,high safety;
Drive element of shunt release is co  ed of thyristor,electromagnetic releaseand so on;
Boththeshellandcomponentsaremadeofimportedhighflameretardant,hightemperature resistant and impact resistant plastics.
工作原理Wo  ng principle

FSB-1S卡式電表開關FSB-1S-32A 2P
使用時通過信號輸入端口給斷路器智能分厲脫扣器極加上控制電壓，即信號電壓(可由遠端控制線路提供)，然后將斷路器手柄推向閉合位置，通過操作機構帶動動觸頭向靜觸頭運行并與靜觸頭可靠接觸，并接通線路。當線路發生過載故障時，過載電流使熱雙金屬元件彎曲，過載脫扣器動作，推動鎖定機構復位，從而實現分?jǐn)嗑€路。當線路發生短路故障時，短路電流使瞬時脫扣器動作，推動鎖定機構復位，實現分?jǐn)嗑€路。當因?yàn)槟撤N需要，必須立即切斷線路時，可能通過無線控制系統斷開控制電壓，此時信號電壓檢測電路得到信號后，對分勵線圈輸出電壓信號，推動整個分勵線圈動作，并同時帶動鎖定機構復位，實現分?jǐn)喙δ?。因此，該產品不同的線路狀態下，均能達到分?jǐn)嗟哪康?span lang="EN-US">.
When using,apply coolvolage to theintellgentshuelease poleof crcutbreaker through signalinputport,ie.signal vollage (can be provided by remotecoolcarcuit,then push he circut breakerhande towards closng   ion,divehe moving contacto runtowards static contact and reliably contacing with throughparaimg mectansn.andputroughthe crcuit.When thecrcuthas overoad fautoveload curent would bend the bimetalic element,overoadrelease actsand pushestelockngmechanisn toreset o break he crcut Whenthedrcuthas shortcrautfasort-circuit curentwould make he nstantaneousrelease act,which pusheshelockmgmechanismtoreset.to break he arcuit When the crcuit mustbe cutofimmediately for some reason,the col vollage may be cut of by wireless coolsystem,atthis moment,the signalvolage detecion ciruit receivesthe signalan ulsvolagesigna to he shunt col,itdrves he whole suntcol to act andpushes the lockng mechanism toreset toreaize breaking funcion.Therefore.,thisproduct is able to realize breaking under diferent circuit states.
機械電氣壽命
FSB-1S卡式電表開關FSB-1S-32A 2P
電氣壽命：4000次，COSφ=0.85~0.9；
機械壽命：6000次。(其中5000次直接人力操作，操作頻率In=32A為240次/小時)，
In＞32A為132次/小時；3200次由分勵脫扣器控制分?jǐn)啵看伍g隔時間≥3min)
應用示例
FSB-1S卡式電表開關FSB-1S-32A 2P
根據用戶需要本公司可生產額定電流320A的卡式電表開關。
The company also is able to product the rated max current at request Specialswitch of 320A for card type meter
