cypress MiniProg3仿真器

CY8CKIT-002 PSoC MiniProg3

PSoC?是一款真正的可編程嵌入式系統級芯片，在單個芯片上集成了可配置的模擬和數字外設功能、存儲器和微控制器。通過極其靈活的可視化嵌入式設計方法，包括經過預配置的用戶定義外設和分層原理圖輸入，您可以隨時改變主意并按期開展工作，而不需要從頭開始重新啟動項目，沒有更多的目錄，也沒有其他限制。

PSoC?架構由可配置的模擬和數字模塊、CPU子系統和可編程的布線和互連單元組成。PSoC使您可以接入來自PSoC功能庫的經過義和測試的IP，或自行編寫代碼。無論采用哪種方式，您都可以靈活地構建具有創新特性和競爭優勢的產品。

PSoC? MiniProg3編程和調試工具包集所有功能于一身，可作為PSoC 1、PSoC 3和PSoC 5架構的編程器，以及PSoC 3和PSoC 5架構的調試工具。該工具包包括一條10引腳的帶狀電纜，用于連接至針對PSoC 3和PSoC 5架構的標準10引腳JTAG插頭接口，同時，器件本身則支持針對PSoC 1架構的5引腳ISSP編程插頭。請注意，此工具包僅包含MiniProg3及配套電纜，其目的是為您提供額外的編程/調試能力，以滿足您的需求。

The PSoC? MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures, debug tool for PSoC 3 and PSoC 5 architectures, and a USB-I2C Bridge for debugging I2C serial connections and communicating to PSoC devices.

The Miniprog3 supports the following protocols:

? SWD

? JTAG

? ISSP

? USB-I2C

Included with the kit is a 10-pin ribbon cable for connecting to standard 10-pin JTAG header interfaces utilized for our PSoC 3 and PSoC 5 architectures while the device itself supports the 5-pin ISSP programming header for PSoC 1 architectures. The 5-pin connector also supports the USB-I2C Bridging capabilities and is a superset of the CY3240 capabilities. Please note, the CY8Ckit-002 only contains the Miniprog3 and supporting cables

Important Usage Note:

There is an electrical risk may be seen when customers reverse the 5 or 10 pin connector when trying to program or debug a system. By doing this power and ground connections will be connected to an electrically vulnerable configuration. This configuration may cause damage to the Miniprog3 resulting in failures. This often occurs when customers have a non keyed connectors or header for their system. The user must be aware of the polarity settings on the target board and/or use keyed connectors when trying to program using the Miniprog3. An update to the Miniprog3 will be ailable in late 2011 that will add ESD protections to the programmer.

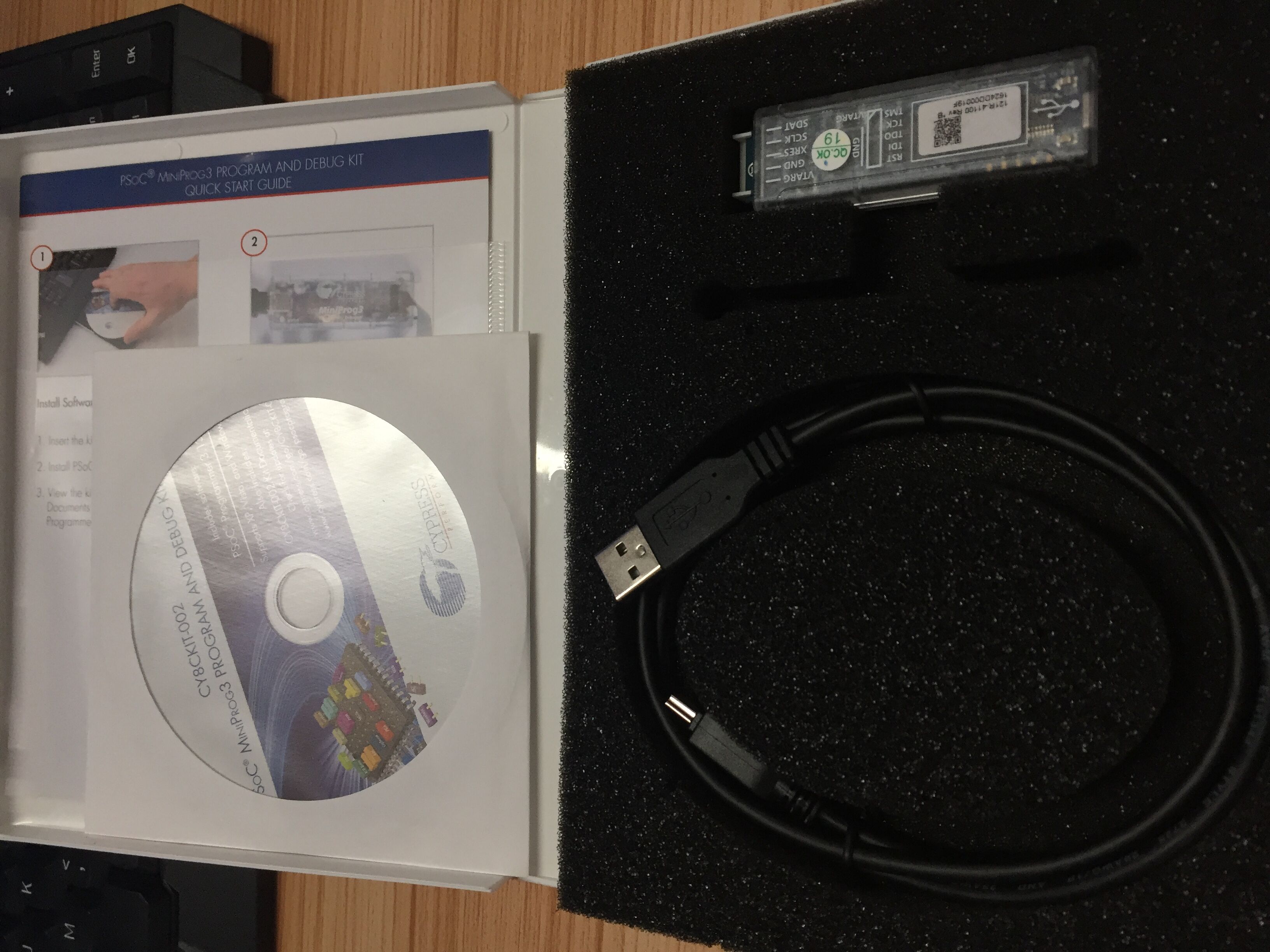

Kit Contents:

· MiniProg3

· Program/Debug Ribbon Cable

· USB Cable



***************************************************
