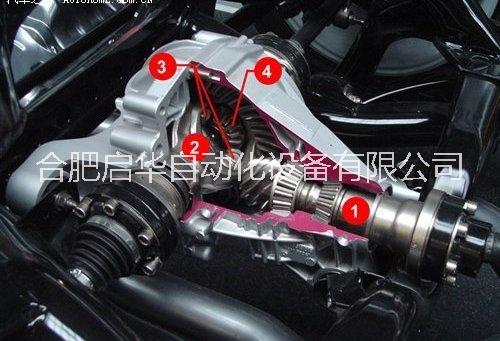

汽車差速器性能試驗臺

（以下簡稱甲方）與合肥啟華自動化設備有限

（Hereinafter referred to as party A）

公司（以下簡稱乙方），就甲方購買乙方生產的__汽車差速器總成性能耐久臺

（Hereinafter referred to as party B）In the e of party A purchase the automobile differential assembly performance durable machine which are produced by party B

事宜，經雙方協商達成如下協議。

The following agreements are agreed upon by both parties

一 功能概述 Firstly   The function overview

汽車差速器總成性能耐久試驗臺是測試汽車差速器零部件扭矩性能等，The automobile differential assembly performance durable testbed is to test the torque performance of automobile differential parts and so on,

以計算機為核心的系統狀態控制、數據采集、數據處理與分析的設

The system state cool, data acquisition, data processing and analysis of the special equipment are based by computer,

備，可以在設備性能范圍內任意設定試驗轉速、扭矩,并可以對試驗轉速、

It can set test speed and torque at any time within the range of equipment performance，and it can do process cool to test rotate speed 、the load time and cycle of torque.

扭矩的加載時間、周期進行程序控制。其主要功能是利用計算機對測試系統

Its main function is to use the computer for test system to make real-time cool, t condition of transformation, to complete auto differential assembly related performance parameters of the real-time collection and processing, calculation of various performance indicators, and record, display and print in the form of chart, curve and so on

進行實時控制、工況轉換，完成汽車差速器總成相關性能參數的實時采集處理，多種性能指標的計算，并以圖表、曲線等形式記錄、顯示和打印。

二 試驗臺的技術說明 Secondly  The technical description of the test bed.

1．測試項目 Test item

根據設計要求，應能對以下項目進行自動測試，自動生成試驗報告并可

根據給定指標對合格與否進行判定。

According to the design requirements, the following items should be automatically tested, and the test report can be generated automatically and can be judged according to the given indicator.

1.1沖擊性能測試 Impact performance test

1.2運轉速度 Operating speed

1.3 低速重載Low-speed hey-loads

1.4高速低載  High -speed low- load

1.5動態平衡 Dynamic balance

1.6 運轉振動Running vibration

2．實驗臺的組成結構The structure of testbed

2.1試驗臺組成Testbed coition

本設備主要由鐵地板、試驗機械臺體、加載驅動電機機構、負載電機機構、測量機構、油溫控制系統、計算機數據處理及軟件控制系統、安全外罩等組成。This equipment is mainly coed of iron floor, testing mechanical stage, load, motor drive system, load motor, measuring mechanism, oil temperature cool system, computer data processing and software cool system, safety cover, etc.

2.2試驗臺外觀 Testbed appearance

試驗臺外觀顏色按工業標準設計，各部分結構緊湊，布局合理，人機交互界面良好。模塊之間用工業橋架連接，各接口之間用航空插頭連接，端口拆卸方便，便于維護和修理，外套波紋管保護。線路安放在相應的橋架內，安全整潔。The appearance and color of the test bed is designed according to the industrial standard, the parts are compact, the layout is reasonable, and the human-computer interaction interface is good. The module is connected with the industrial bridge, and the ports are connected by air plug. The port is disassembled and convenient for maintenance and repair, and the coat corrugated pipe is protected. The line is placed in the corresponding bridge frame, safe and tidy.

    試驗臺三維結構圖

 Three- dimensional structure diagram of the test bed.

動力輸入裝置Power input device  油箱Fuel tank

油溫控制系統 Oil temperature cool system

三、試驗臺詳細說明 Thirdly  The detailed description of testbed

1 試驗臺臺架機械結構Testbed bench mechanical structure.

1．1試驗機械臺體 Test machine body.

平臺整體鑄造，材料HT200，大型龍門刨床加工。安裝平臺上縱向加工

The entire bench is t, the material HT200, processed by large planning machine. Longitudinal processing T slot in the installation platform,
