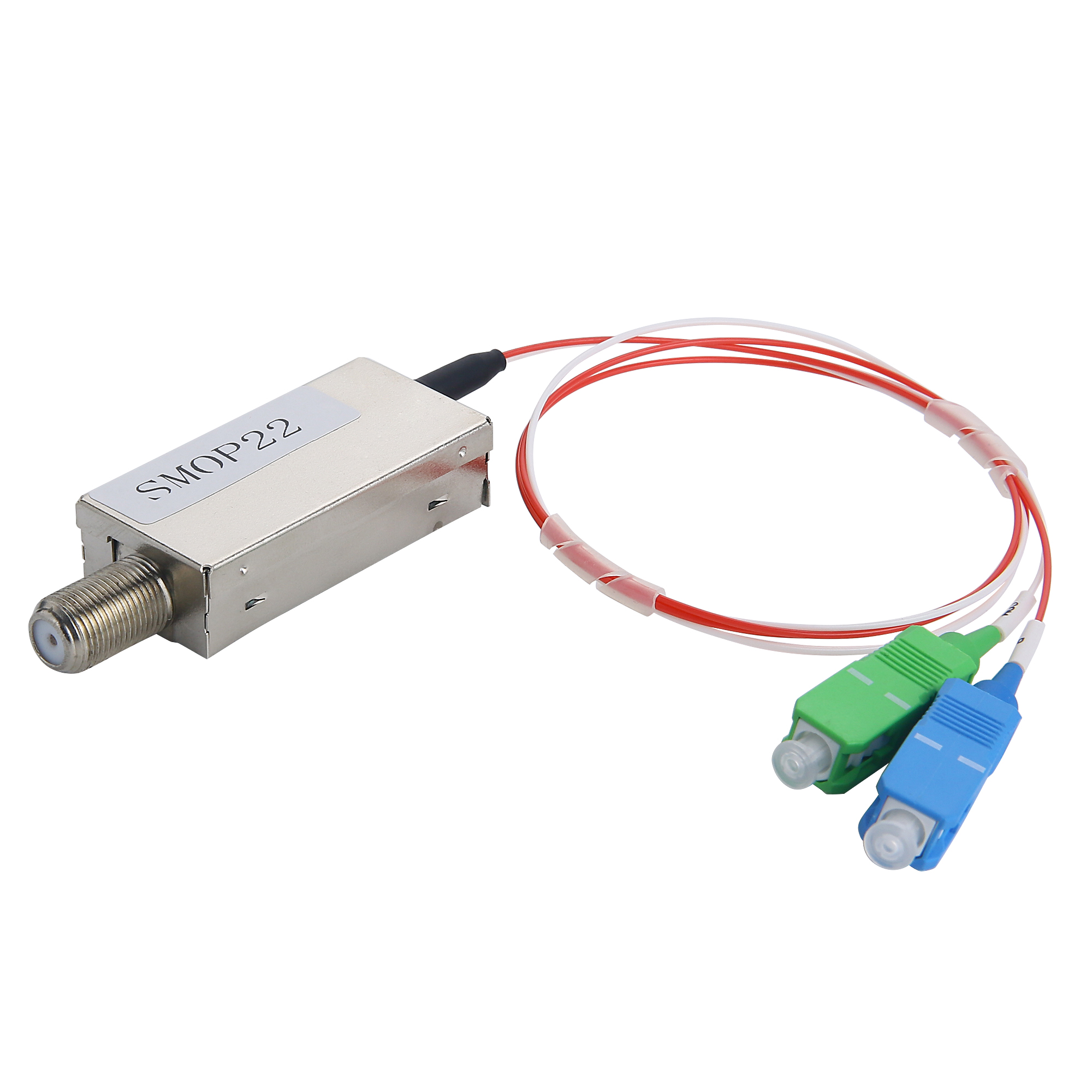

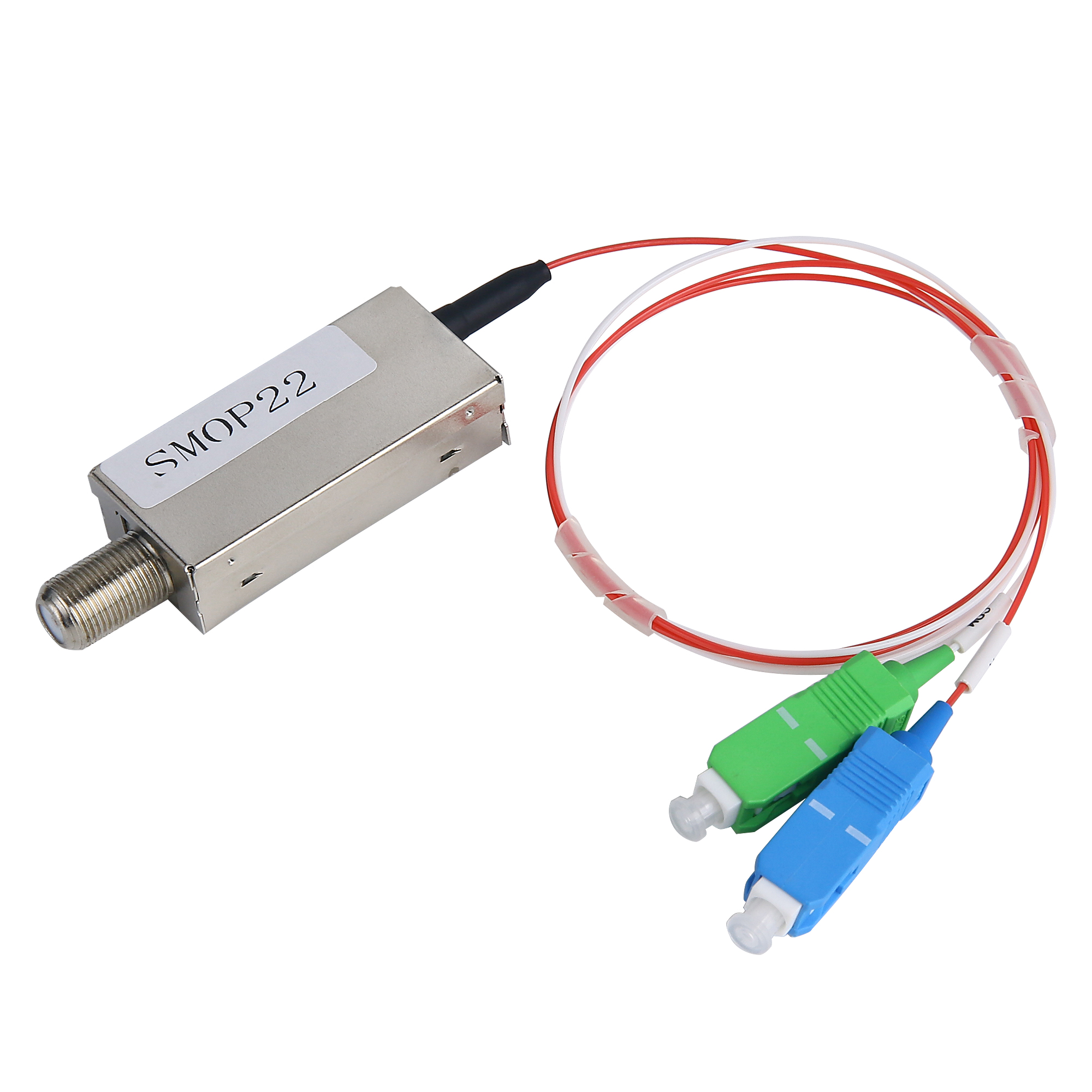

SMO-P22 AGC光接收模塊 射頻模塊 Gpon模塊 Gpon模塊廠家
深圳市g(shù)pon模塊廠家
價格： 電議
物流： 廣東 深圳市 龍崗區| 賣家支付運費
可銷售總量： 100000件
手機： 18565688059 郵箱： ada@pinsignal-tech.com
傳真： 尚未完善 地址： 廣東 深圳市
郵箱：
手機：
特征
● 出色的線性度
● 極低的噪音
● 優異的平整度
● 堅固的結構
● FC/APC
● AGC&WDM功能
描述
SMO-P22 AGC 光接收模塊是一款低功耗但性能良好的光接收器。 AGC 電路使輸出電平在-10~0dBm 范圍內穩定。 小尺寸，帶 FC 連接器，可組裝在小機箱中。
| CHARACTERISTICS | ||||||
| (Bandwidth 45 to 1000MHZ; Tmb＝25℃, VB＝5V, ZS＝ZL＝75Ω) | ||||||
| SYMBOL | PARAMETER | UNIT | MIN. | TYP. | MAX. | CONDITIONS |
| s | responsively | A/W | 0.85 | | | λ=1550nm |
| FL | Flatness of frequency response | dB | | | ±1.0 | f=47 to 1000 MHZ |
| VO | RF Output Voltage | dBmV | 80 | 81±1 | 83 | Optical power input range in -10dBm ~ 0dBm |
| OMI | Optical modulation Index | Ch% | 4.0 | |||
| △S | Optical return loss | dB | 45 | |||
| Optical fiber connector | Typical of optical connector ( green Color) | |||||
| FL1 | Flatness of frequency response | dB | - | ±1.0 | ±1.5 | f=45 to 1000 MHZ, wide band flatness |
| FL2 | Flatness of frequency response | dB | - | | ±0.4 | Narrow bandwidth per 7MHz |
| SL | Slope | dB | 0 | 1.5 | 3 | From 45~1000MHz |
| S22 | Output Return Loss | dB | -12 | - | - | f=45 to 870 MHZ |
| S22 | Output Return Loss | dB | -12 | - | - | f=871 to 1000 MHZ |
| Automatic Gain Cool Receiving Power: -8~0dBm (According to customer requirements) | ||||||
| Vo1 | Output Voltage | dBuV | 80 | | 83 | Popt= -10~0dBm BW=45~1000MHz 42 channels T=25℃ OMI=4% per channe |
| Vo2 | Output Voltage | dBuV | 80 | | 83.5 | Popt= -10~0dBm BW=45~1000MHz 42 channels T=0~40℃ OMI=4% per channel |
| CTB | Coite Triple Beat | dB | - | - | -60 | Optical power -3dBm 42 channels PAL-D .175.25MHz OMI=4% per channel |
| CSO | Coite Second Order distortion | dB | - | - | -60 | |
| C-spurious | Carrier to spurious | dB | - | - | -60 | |
| CTB | Coite Triple Beat | dB | - | - | -60 | Optical power -8dBm 42 channels PAL-D .175.25MHz OMI=4% per channel |
| CSO | Coite Second Order distortion | dB | - | - | -60 | |
| C-spurious | Carrier to spurious | dB | - | - | -60 | |
