供應視頻信號轉換器

視頻信號轉換器

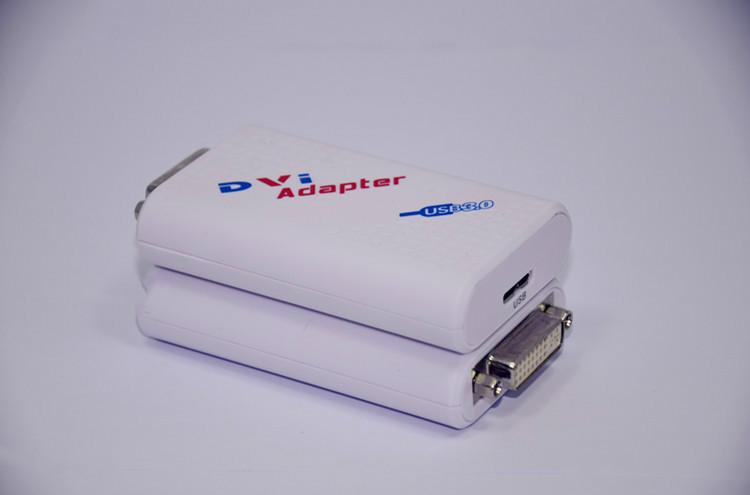

USB3.0 to DVI Adapter

n       Ioduction

The USB3.0 DVI Adapter provides a unique solution to add extra displays to a computer without using traditional graphics card. Users can instantly mirror or extend a desktop onto another display via standard DVI, such as LCD, CRT, projector and plasma displays. With USB interface plug-n-play and bus power feature, this product brings multi-monitor applications into the mainstream.

n       Features

1.      Add-on monitor, LCD or projector through USB3.0 Super-Speed connectivity.

2.      High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit.

3.      Supports Microsoft Windows operation system.

4.      Supports desktop display mirror, extend mode, multi screen mode and screen rotation mode

5.      Up to six USB3.0 graphic adapters to work simultaneously.

6.      Automatic recognition of monitor type, resolution, and features.

7.      Hot-swapping / Plug-n-Play of monitors without reconfiguration.

n       Specificaitons

1.      Input ports:    1x USB3.0

2.      Output ports:   1xDVI.

3.      Support Resolution  640x480, 800x600, 1024x768,1152x864,

1280x720, 1280x768, 1280x800, 1280x960,

1280x1024, 1360x768, 1400x1050, 1440x900,

1600x1200, 1680x1050, 1920x1080, 1920x1200,

2048x1152

4.      O.S. Support     Windows XP/Vista/7 (X86/X64)

5.      Dimensions (mm)       84(W) x52 (D) x 18(H)

6.      Wight (g):          40

n       Application Example
